Cảm biến đo Momen xoắn loại trục không quay 50 - 10000 Nm Lorenz D-2268

Chia sẻ:
Mã sản phẩm: D-2268
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Torque flange D-2268, non rotation, with high torsional stiffness & a nominal torque from 50 N·m - 10000 N·m produced and distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn loại trục không quay 50 - 10000 Nm Lorenz D-2268

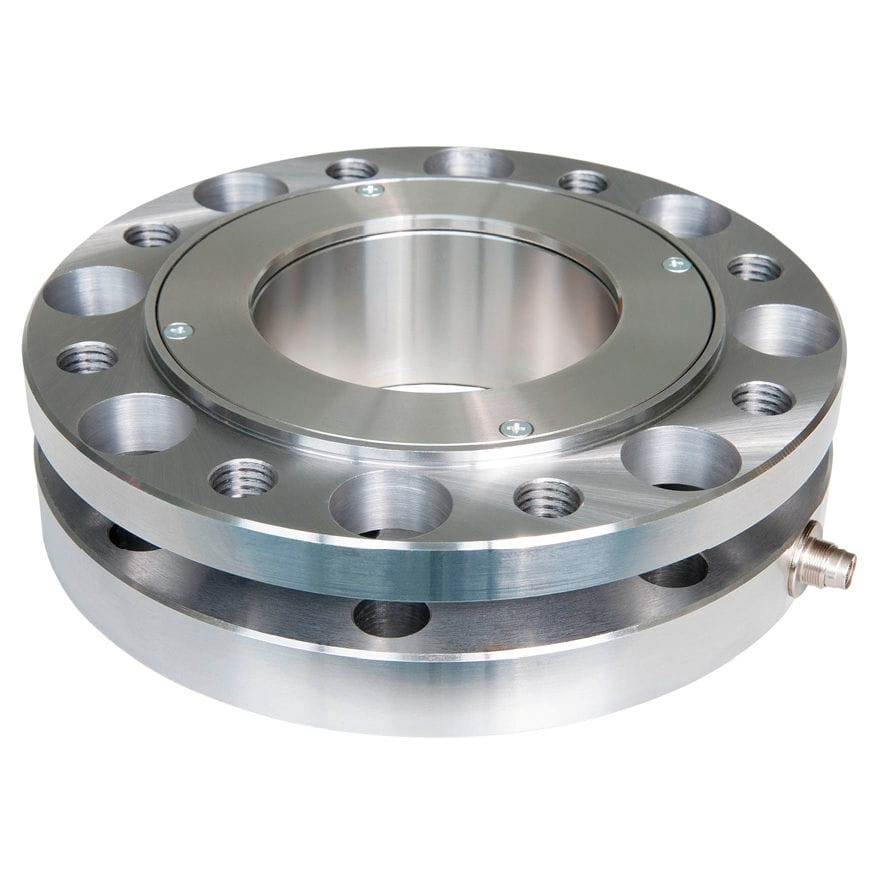

D-2268, Flange Mount Reaction Torque Sensor
The D-2268 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness are paired with through-hole design, leading to simple handling and simple assembly.

Features:

  • Through Hole
  • Very Short Axial Length
  • Connection: 6-pin Series 712 Connector
  • Flange Mounting
  • Special Versions on Request

D-2268 - Specifications

Type Reaction
Full Scale 50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
  5000 Nm
  10000 Nm
Output 1 mV/V
Precision ±0.10 % FS
Excitation 2 V - 12 V DC
Drive Side Flange
Test Side Flange
IP Rating IP54
Min Temperature -15 °C
Max Temperature 55 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 7-pin female cable connector and free soldered ends
Connection cable, 3 m, with 7-pin female angle cable connector and free soldered ends

PDF Datasheet: 080855a_D-2268_en.pdf
