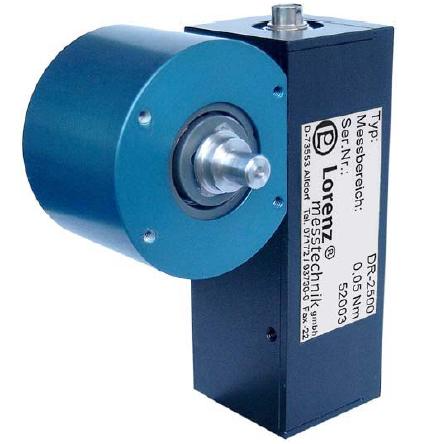

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.005 - 150 Nm Lorenz DR-2500

Chia sẻ:
Mã sản phẩm: DR-2500
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Rotating bearingless torque transducers, maintenance-free, with speed measurement, for assembly technique employments produced by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.005 - 150 Nm Lorenz DR-2500

DR-2500, Analog Output High Speed Rotary Torque Sensor
The DR-2500 has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free. This unit operates with analog output.

Features:

  • Contactless Rotary Torque Sensor
  • High Speed up to 30000 RPM
  • Round Shafts
  • Connection: 8-pin Series 711 Connector with Speed
  • Sample Rate: 10 kSample
  • Analog Output ±5V (±10V Option)

DR-2500 - Specifications

Type Rotary
Full Scale 0.005 Nm
  0.01 Nm
  0.02 Nm
  0.05 Nm
  0.1 Nm
  0.2 Nm
  0.5 Nm
  1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
  50 Nm
  100 Nm
  150 Nm
Max Speed 20000 RPM
  30000 RPM
Output ±5 V DC
  ±10 V DC
  Speed/Angle (TTL)
Precision ±0.10 % FS
Excitation 12 V - 28 V DC
Drive Side Round Shaft
Test Side Round Shaft
IP Rating IP50
Min Temperature 0 °C
Max Temperature 60 °C

Download

Suitable Coupling (PDF Datasheet): 0.005..20 N·m
50..150 N·m
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 8-pin female cable connector and free soldered ends
Connection cable, 3 m, with 8-pin female angle cable connector and free soldered ends

PDF Datasheet: DR-2500: 080897_DR-2500_en.pdf
DR-2600: 080899b_DR-2600_en.pdf
