Cảm biến đo lực nén 5 - 15 kN Lorenz K-2071

Chia sẻ:
Mã sản phẩm: K-2071
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Compression Force Transducer K-2071 - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

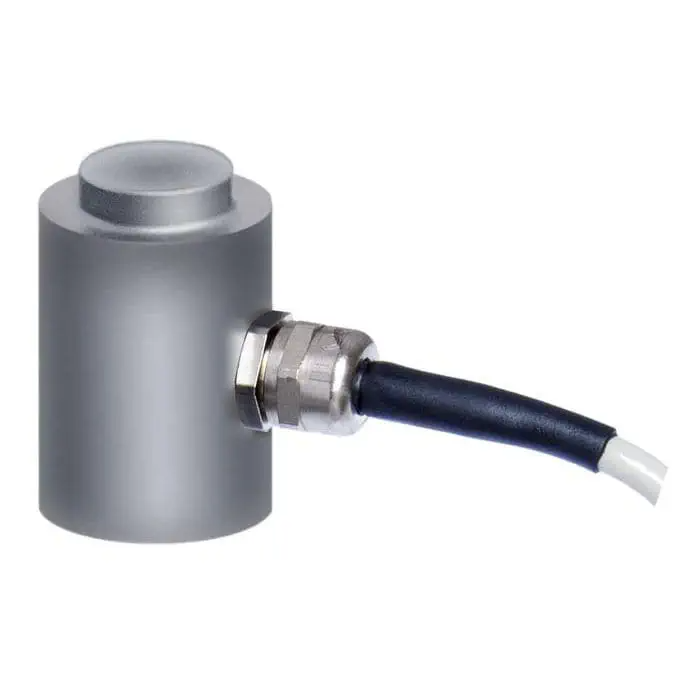

Cảm biến đo lực nén 5 - 15 kN Lorenz K-2071

K-2071, Miniature
The Canister Load Cell (Miniature) is designed to measure loads in compression. The K-2071 Load Cell (Miniature) is offered in Stainless Steel up to 15 Kn range, with a raised surface radius to lower the possibility for off center loading.

Features:

  • Compression
  • Outer Diameter: 19.5mm
  • Height: 35.0mm
  • Accuracy: ±0.3%
  • Connection: 3m Cable
  • Stainless Steel

K-2071 - Specifications

Type Load Button
Application Compression
Full Scale 1120 lbs
  2200 lbs
  3400 lbs
Output 1 mV/V
Precision ±0.3 % FS
Excitation 2 V - 6 V DC
IP Rating IP65
Min Temperature 0 °C
Max Temperature 60 °C

Download

PDF Datasheet: 080783a_K-2071_en.pdf
