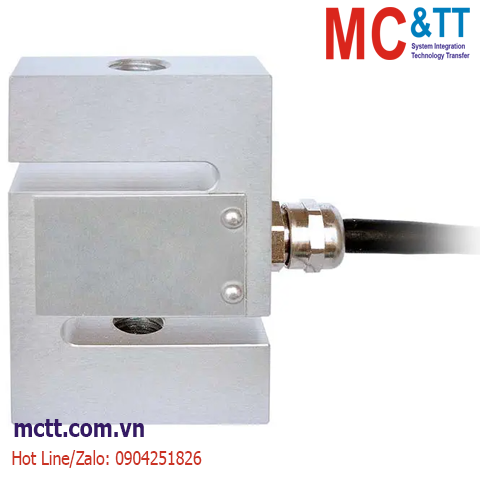

Cảm biến đo lực kéo và nén 0.02 - 50 kN Lorenz K-25

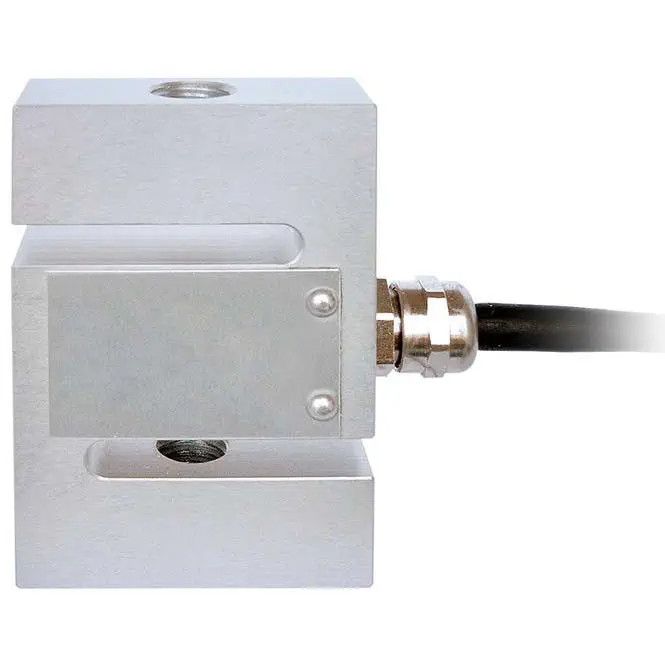

The Model K-25 load cell features a high accuracy ‘S’ beam design, built for measuring bidirectional forces with a threaded load connection on each end. The K-25 S Beam Load Cell offers a compact design for platforms, silos, or scales. With high accuracy it is suitable for measuring both Tension and Compression forces
Features:
- Economical
- Tension & Compression
- Accuracy Class: ±0.1% or ±0.2%
- Overload Protection (option)
- Length: 50.0mm - 65.0mm
- Width: 20.0mm - 39.5mm
- Height: 75.0mm - 85.0mm
- Connection: 3m Integral Cable
- Aluminum (≤ 1 kN)
- Stainless Steel (≥ 50 kN)
K-25 - Specifications
| Type |
S-Type |
| Application |
Tension & Compression |
| Full Scale |
4.5 lbs |
| |
220 lbs |
| |
1120 lbs |
| Output |
1 mV/V |
| |
2 mV/V |
| Precision |
±0.1 % FS |
| |
±0.2 % FS |
| Excitation |
2 V - 12 V DC |
| IP Rating |
IP60 |
| |
IP67 |
| Min Temperature |
-10 °C |
| Max Temperature |
70 °C |
Download
| Type: |
K-25 |
| Measuring Range: |
0.02..50 kN |
| Accuracy Class: |
0.1..0.2 |
| Range of Application: |
E.g. for Tension/Compressive Testing Machines |
| PDF Datasheet: |
080815c_K-25_en.pdf |
| PDF Operation Manual: |
Download |
| CAD Files: |
DXF
IGS; STP |
