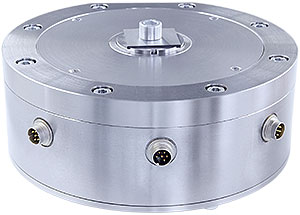

Cảm biến đo Momen xoắn và lực 100 Nm / 100 Nm / 100 kN Lorenz M-2230

Chia sẻ:
Mã sản phẩm: M-2230
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Multi-Component Screw Testing Sensor M-2230, for screw testing: Thread friction torque, screw head friction torque and preload - Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn và lực 100 Nm / 100 Nm / 100 kN Lorenz M-2230

M-2230, Thread Friction Sensor
The M-2230 multi-component sensor has two reaction torque measurements and one load measurement.



Features:

  • Pre Load & Thread Friction Torque Measurement
  • Accuracy: ±0.20% F.S.
  • Outer Diameter: 234.0mm
  • Height: 106.0mm
  • Connection: 6-pin Connector

M-2230 - Specifications

Type Multi-Axis
# of Axis 3 (Fz, Mx, My)
Application Compression
Full Scale 22000 lbs
Output 0.5 mV/V
Precision ±0.2 % FS
Excitation 2 V - 12 V DC
IP Rating IP50
Min Temperature 5 °C
Max Temperature 45 °C

Download

Type: M-2230
Measuring Range: 100 N·m / 100 N·m / 100 kN
Accuracy Class: 0.2
Range of Application: Screw Testing: Thread Friction Torque, Screw Head Friction Torque and Preload
Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080975_M-2230_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
