Cảm biến đo Momen xoắn và lực 10 kN / 10 Nm Lorenz M-2354

Chia sẻ:
Mã sản phẩm: M-2354
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Multi-Component Sensor M-2354 (force & torque transducer) for force and non rotary (static) torque measurement produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo Momen xoắn và lực 10 kN / 10 Nm Lorenz M-2354

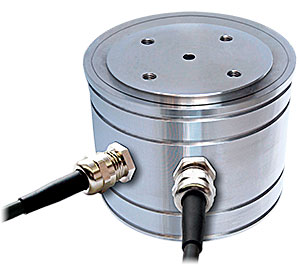

M-2354, Multi-Component Sensor
The M-2354 multi-component sensor has two reaction torque measurements and one load measurement.

Features:

  • Torque & Load Force
  • Accuracy: ±0.20%
  • Outer Diameter: 99.5mm
  • Height: 85.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel

M-2354 - Specifications

Type Multi-Axis
# of Axis 2 (Fz, Mx)
Application Tension & Compression
Full Scale 22000 lbs
Output 1 mV/V
Precision ±0.2 % FS
Excitation 2 V - 12 V DC
IP Rating IP40
Min Temperature -10 °C
Max Temperature 50 °C

Download

Type: M-2354
Measuring Range: 10 kN / 10 N·m
Accuracy Class: 0.2 (F)
0.2 (Mt)
Range of Application: E.g. Survey of the Bearing Friction of Ball Bearings
PDF Datasheet: 080983_M-2354_en.pdf
PDF Operation Manual: -
CAD Files: DXF
IGS
