Bộ chuyển đổi kết nối Profibus ICPDAS
Gọi +84 904251826 để được trợ giúp

PROFIBUS (PROCESS FIELD BUS) which is anchored in the international standards IEC 61158 and IEC 61784 is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. It is suitable for both fast, time-critical applications and complex communication tasks.

To let user can use this powerful communication system more easily, ICP DAS provides kinds of PROFIBUS DP products. We have been developing and studying PROFIBUS DP for years. ICP DAS will always secure user’s industrial safety and stable automation system as our mission







PROFIBUS DP is the main emphasis for factory automation, it uses RS-485 transmission technology. DP is the simple, fast, cyclic and deterministic process data exchange between a bus master and the assigned slave devices. The original version, designated DP-V0, has been expanded to include version DP-V1, offering acyclic data exchange between master and slave. A further version DP-V2 is also available, which provides for direct slave to slave communication with an isochronous bus cycle.

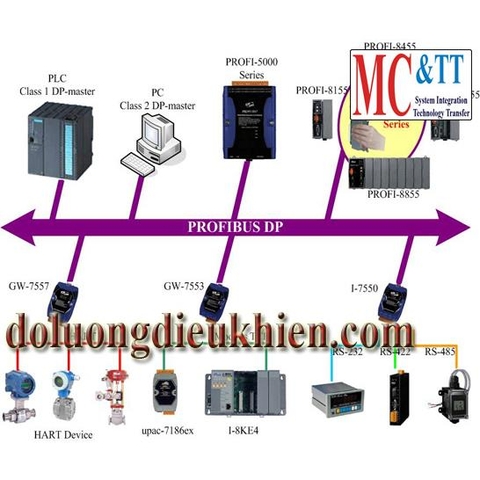

Class 1 Master

  • A central programmable controller (PLC)
  • Exchanges I/O data with connected slaves
  • Determines the baud rate (slaves auto-detect this rate)
  • Manages the token transfer between masters. Detects another master during the gap time

Class 2 Master

  • Diagnostic, configuration, or startup tool (laptop、PC、programming console)
  • Can only control one slave at a time
  • Does not have write-access to the slave
  • Does not have a GSD file

Slave

  • A passive station which can only respond per a master request and acknowledge messages. A slave has no bus control rights
  • The GSD file defines the slave for the master

OSI Model

GSD

GSD is a readable ASCII text file and contains both general and device-specific specifications for communication. Each of the entries describes a feature that is supported by a device. A configuration tool reads the device identification, the adjustable parameters, the corresponding data type and the permitted limit value for the configuration of the device from GSD.







  • Baudrate up to 12Mbit/s
  • Maximum 244 bytes input and 244 bytes output per slave
  • Slave configuration and parameters are set from the master side by GSD file
  • Allow Multi-master system
  • Fast Cyclic data communication between master and slave
  • 124 slaves can be put in Data Exchange
  • 32 stations on one segment

Baudrate
(Kbit/s)

9.6

19.2

45.45

93.75

187.5

500

1500

3000

6000

12000

Segment Length
(m)

1200

1200

1200

1200

1000

400

200

100

100

100








Model Description
Converter & Repeater

PROFI-2510 Isolated PROFIBUS repeater
PROFI-2541
PROFI-2541-SC
PROFIBUS to fiber converter
PROFI-2542-SC PROFIBUS/Single mode Fiber Converter
I-7550 PROFIBUS DP slave to RS-232/RS-485/RS-422 converter
I-7550E PROFIBUS/Ethernet Converter
Gateway
GW-7552 PROFIBUS DP slave to Modbus RTU/ASCII gateway
GW-7553 PROFIBUS DP slave to Modbus TCP/RTU/ASCII gateway
GW-7557 PROFIBUS DP slave to HART master gateway
Remote I/O Unit
PROFI-8155 1-slot PROFIBUS slave I/O unit
PROFI-8255 2-slot PROFIBUS slave I/O unit
PROFI-8455 4-slot PROFIBUS slave I/O unit
PROFI-8855 8-slot PROFIBUS slave I/O unit
Remote I/O Module
PROFI-5017 8-ch voltage input PROFIBUS slave module
PROFI-5017C 8-ch current input PROFIBUS slave module
PROFI-5018 10-ch Thermocouple Input Module with High Voltage Protection
PROFI-5024 4-ch voltage/current output PROFIBUS slave module
PROFI-5045 Isolated 24-ch DO PROFIBUS slave module
PROFI-5050 16-ch DI & 8-ch DO PROFIBUS slave module
PROFI-5051 Isolated 24-ch DI PROFIBUS slave module
PROFI-5052 Ch-to-ch Isolated 12-ch DI PROFIBUS slave module
PROFI-5053 24-ch DI PROFIBUS slave module
PROFI-5055 Isolated 8-ch DI & 8-ch DO PROFIBUS slave module
PROFI-5060 Isolated 8-ch DI & 4 relay output PROFIBUS slave module
Accessories
CNT-PROFI PROFIBUS Connector
