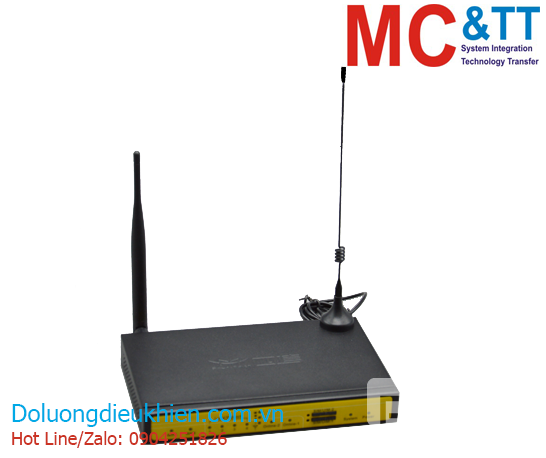

F3132: Router công nghiệp Dual Sim GPRS 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Thương hiệu: Four-Faith | Tình trạng: Còn hàng
Liên hệ

F3132: Router công nghiệp Dual Sim GPRS 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Gọi +84 904251826 để được trợ giúp

F3132: Router công nghiệp Dual Sim GPRS 4 LAN + 1 WAN + RS-232 + APN/VPN + Wi-Fi

Features

●  GPRS
●  Samart Link Switch Backup
●  Powerful WIFI
●  Provide More Security Deployment Scenarios
●  Reliable Networking And Communication
●  Support APN/VPDN
●  Convenient configuration and maintenance interface
●  Support Local and Remote Firmware Upgrade

Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.








Provide More Security Deployment Scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible

Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to unattended systems





Specification

Cellular Specification

Item Content
Cellular Module Industrial cellular module
Standard and Band EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
Bandwidth 85.6Kbps
TX power GSM850/900: <33dBm
GSM1800/1900: <30dBm
RX sensitivity <-107dBm

 WIFI Specification

Item Content
Standard IEEE802.11b/g/n
Bandwidth IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security WEP, WPA, WPA2, etc.
WPS (optional)
TX power 21.5dBm(11g),26dBm(11b)
RX sensitivity <-72dBm@54Mpbs

 Hardware System

Item Content
CPU Industrial 32bits CPU
FLASH 8MB(Extendable to 64MB)
SDRAM 64MB

 Interface type

Item Content
WAN 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
Indicator "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength"
Antenna Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset Restore the router to its original factory default settings
USB Standard A type USB host interface (reserved)


 Power supply

Item Content
Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <450mA (12V)

 Physical Characteristics

Item Content
Housing Iron, providing IP30 protection
Dimensions 206x135x28 mm
Weight 790g

 Environmental Limits

Item Content
Operating Temperature -35~+75ºC(-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)

Download

Specification

Use Manual

Software
