I-7540D-MTCP-G CR: Bộ chuyển đổi Gateway CAN sang Ethernet Modbus TCP / Modbus RTU

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

I-7540D-MTCP-G CR CAN to Ethernet / Modbus TCP / Modbus RTU Converter (Plastic Case) (RoHS)

Gọi +84 904251826 để được trợ giúp

I-7540D-MTCP-G CR: Bộ chuyển đổi Gateway CAN sang Ethernet Modbus TCP / Modbus RTU

Features

  • 80186-80 Embedded CPU, or compatible
  • Ethernet Protocols, TCP,UDP,IP,ICMP,ARP
  • COM driver support interrupt & 1K QUEUE Input & Output buffer
  • Provide 200 CAN frames buffer in CAN to Modbus Mode
  • NXP 82C 250 CAN Transceiver
  • Support both CAN specification 2.0A and 2.0B
  • Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
  • Max transmission distance of CAN over 1000m (follow CAN specification)
  • 7-segment LED display to Module IP, RS-232 baud rate, CAN configuration…
  • CAN Error/Tx/Rx LED indicator
  • Software configurable CAN and RS-232 communication parameters
  • Firmware updated from COM1 or Ethernet port
  • Support Web Configuration
  • Support maximum 24 Ethernet clients connection
  • Support function code 0x03/0x04/0x10 of Modbus TCP/RTU command for reading and writing CAN message
  • Provide the transparent communication between the CAN devices via Ethernet
  • Support 30 specific CAN IDs in the Modbus TCP/RTU mode\

Introduction

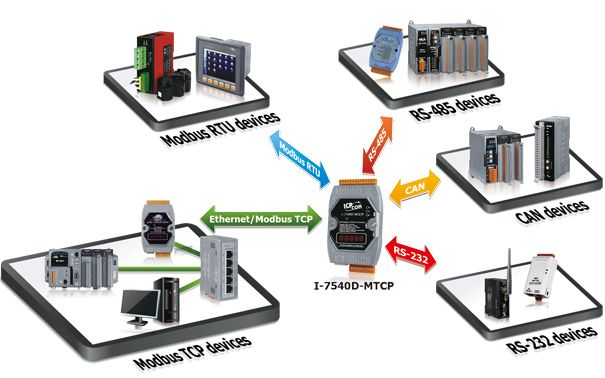

The I-7540D-MTCP is helpful for data exchanging between the Modbus devices and CAN devices. I-7540D-MTCP is a Modbus TCP server and acts as slave device in Modbus RTU network. It supports four communication modes: Modbus TCP, Modbus RTU, CAN-Ethernet Convert and Pair connection.

The major function of the I-7540D-MTCP is CAN to Modbus TCP/RTU gateway. It allows Modbus TCP/RTU device to communicate with CAN device on a CAN network. I-7540D-MTCP supports the function codes 0x03/0x04/0x10 of Modbus TCP/RTU for reading and writing CAN messages.

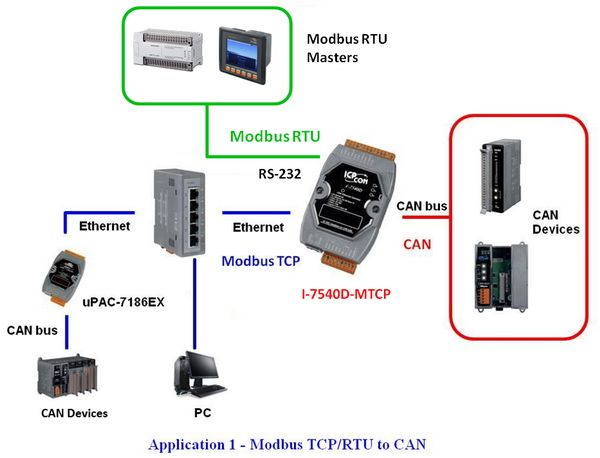

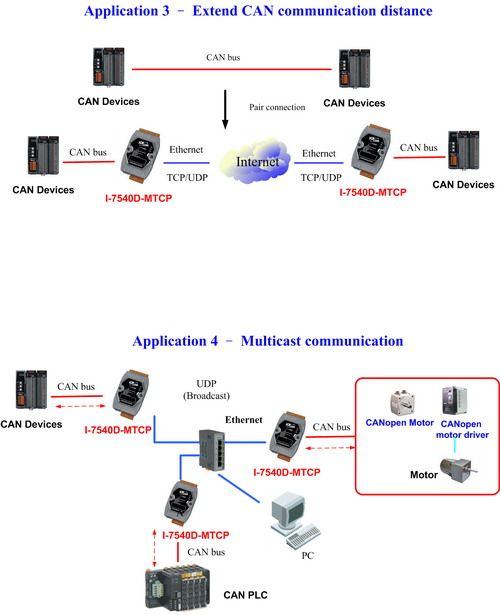

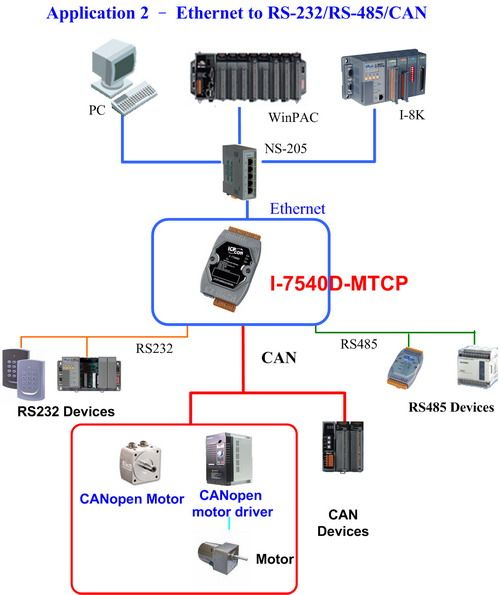

Furthermore, The device supports a transparent, protocol-independent transfer of the CAN messages, thus allowing its implementation into a wide range of possible applications. Furthermore, the CAN-Modbus Converter can be used with various higher layer CAN protocols (e.g. CANopen, DeviceNet or other proprietary protocols). The following figure shows the application architecture for CAN-Modbus Converter.

Specifications

LED Indicators
Status 1 x Power
3 x CAN status



COM Ports
Ports 1 x RS-232
1 x RS-485 (self-turner ASIC inside)
Baud Rate 110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Parity None, Even, Odd
Data Bit 7, 8
Stop Bit 1



Ethernet
Ports 1 x RJ-45, 10/100Base-T(X)



CAN
Controller NXP SJA1000T with 16 MHz clock
Transceiver NXP 82C250
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 1000 VDC for DC-to-DC, 2500 Vrms for photo-coupler
Terminal Resistor Jumper for 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes



Power
Input Range +10 VDC ~ +30 VDC
Consumption 2.5 W



Mechanical
Casing Plastic
Dimensions (mm) 72 x 122 x 33 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering Information

I-7540D-MTCP-G     CR  CAN to Ethernet / Modbus TCP / Modbus RTU Converter (Plastic Case) (RoHS)
