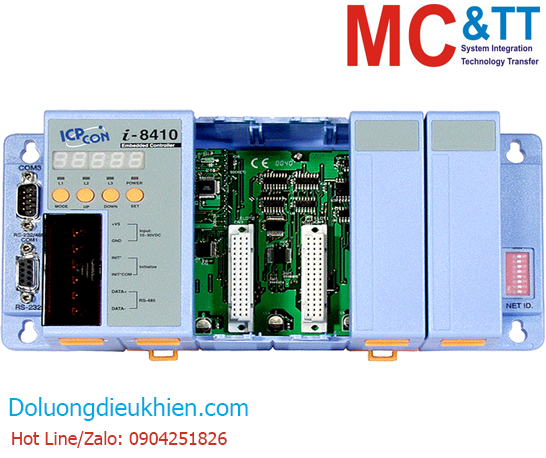

I-8410 CR: Bộ lập trình nhúng 3 cổng COM+ 4 khe cắm module mở rộng

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

I-8410 CR 4-slot Serial I/O Expansion Unit with 80188-40 CPU and 3 Serial Ports (DCON Protocol) (Blue Cover) (RoHS)

THÔNG TIN SẢN PHẨM

Features

• 80188 or compatible (8-bit and 40 MHz)
• MiniOS7 Embedded Operating System (DOS-like)
• Slave I/O unit with DCON protocol (ASCII-based protocol )
• Support I/O configuration with DCON Utility
• Built-in Watchdog
• 7-Segment display x 5
• Serial Port x 3 (RS-232 or RS-485 communication Interface)
• 4 Slots for I-8K and I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

The I-8410 is an embedded serial slave I/O expansion unit using DCON Protocol Firmware. ICPDAS provides various I/O modules, such as analog input/output, digital input/output and counter/frequcncy modules, which can be used in remote data acquisition and control applications for environment monitoring, power management and factory automation, etc.

The CPU is a 8-bit 80188 (40 MHz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm or light.

Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8410/I-8810 and can be quickly integrated into an existing system.

Specification

Software
Protocol	DCON

CPU Module
CPU	80188 or compatible, 8-bit and 40 MHz
64-bit Hardware Serial Number	Yes
EEPROM	2 KB
Flash	256 KB
SRAM	256 KB
Watchdog Timer	Yes

Display
Type	5 x Digit 7 Segment LED Display

LED Indicators
Status	1 x Power, 3 x Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	4

COM Ports
Ports	1 x RS-232, 1 x RS-485, 1 x RS-232/RS-485

HMI
DIP Switch	8-bit for address
Push Button	4

Power
Input Range	+10 ~ 30 VDC
Consumption	3.9 W

Mechanical
Dimensions (mm)	231 x 110 x 77 (W x L x H)
Installation	DIN-Rail, Wall mounting

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +85 °C
Humidity	5 ~ 95 % RH, Non-condensing

Download

Data sheet

Documents

Ordering information

I-8410 CR

4-slot Serial I/O Expansion Unit with 80188-40 CPU and 3 Serial Ports (DCON Protocol) (Blue Cover) (RoHS)
