Thiết bị đo điện thông minh 1 pha 1P2W-2CT 60A Ethernet Modbus TCP ICP DAS PM-3112-100-MTCP CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Single-phase Smart Power Meter

THÔNG TIN SẢN PHẨM

Features

• True RMS Power Measurements
• Energy Analysis for 1P2W, 1P4W
• Current Measurements Up to 60 A with Different CT Ratio
• Voltage Measurements Up to 300 V
• Clip-on CT for Easy Installation
• W Accuracy Better than 0.5% (PF=1)
• Supports Modbus TCP Protocol
• Supports 2 Power Relay Output (Form A)
• IEC 61010-1 and EN 61010-1

Introduction

ICP DAS brings the most powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (< 0.5%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, Modbus TCP or CANopen protocols for easy integration.

Application

• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis

Specification

AC Power Measurement
Wiring	1P2W-2CT
Loops	Single-phase
Input Voltage	10 ~ 300 V
Input Current	CTØ10 mm (0.05 A ~ 60 A)
Input Frequency	50/60 Hz
W Accuracy	Better than 0.5% (PF=1)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

CT
Includes CTs	2
Type	Clip
Max. Current	60 A
Inside Diameter	10 mm
Leading Cable	1.8 m

Ethernet
Protocol	Modbus TCP

Power
Input Range	+12 ~ 48 VDC
Consumption	2W
Alarm Contact	Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VD

Mechanical
Casing	Plastic
Dimensions (mm)	33 x 127 x 100 (W x L x H)
Installation	DIN-Rail Mounting

Environmental
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-25 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PM-3112-100-MTCP CR

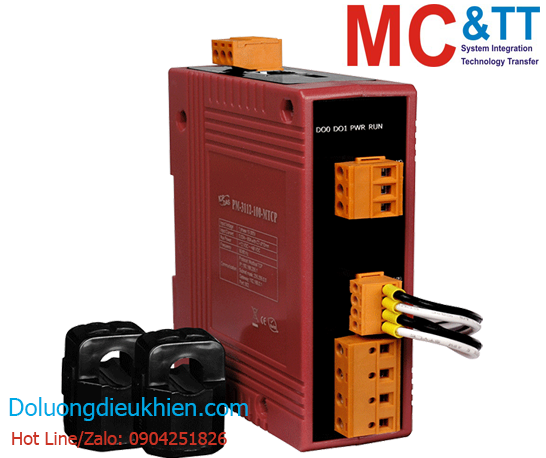

Modbus TCP, 2 loops single-phase Power Meter; includes 60A CT (Inside diameter 10 mm; wire lead 1.8 m) x 2 (RoHS)
