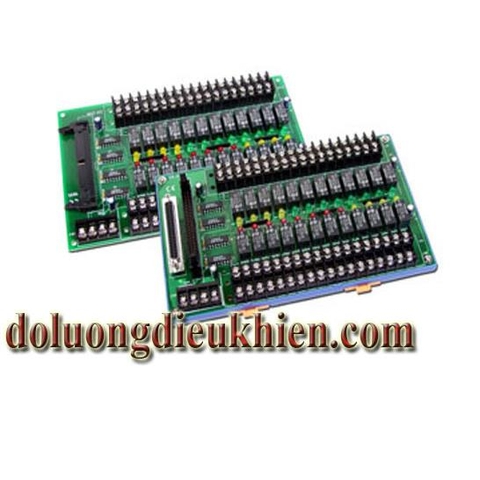

DB-24R/24V 24-channel OPTO-22 compatible relay Output Board

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

24 Form C Relays (SPDT)
SPST: Single Pole Double Throe
OPTO-22 Compatible Connector
Connects directly to DIO-24,DIO-48,DIO-144 OPTO-22 compatible board or any 722,724 series board

THÔNG TIN SẢN PHẨM

DB-24R/24V 24-channel OPTO-22 compatible relay Output Board

FORM C RELAY
Type : 1 form C
Nominal load : 0.5 A /120 VAC , 1A /24 VDC
Max. Switching power : 60VA,24W
Max. Switching Voltage : 120VAC,60VDC
Max. Switching Current : 1A
Life Expectancy : Mechanical ( 2 x 107 ); Electrical ( 2 x 10 5)
Release Time Value : Operate ( 6 ms )
Control Logic : Input TTL high (+5V) , relay on
Power Consumption : +12V @0.3A max ,+5V @0.18A max
Dimension : 220mm X 132mm
Operating Temperature : 0 -60°C
Storage Temperature : -20~70°C
Humidity : 5% to 90 % noncondensing
