Bo mạch 24 kênh đầu ra Relay SSD AC ICP DAS DB-24SSR/D

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

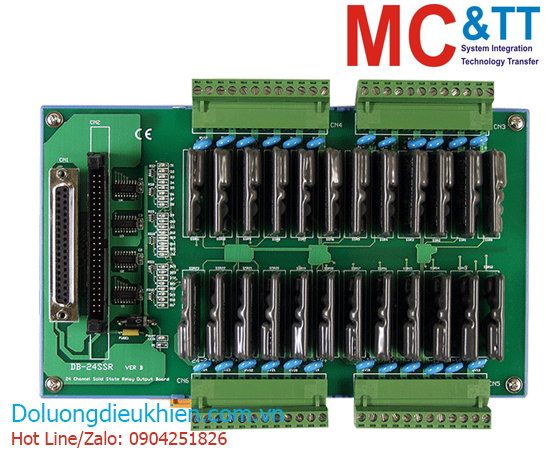

24-ch AC-Type Solid-State Relay Board

THÔNG TIN SẢN PHẨM

Features

24 Form A solid-state relays
One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
Connects directly to OPTO-22 compatible board
LED’s indicated relay status
Screw terminals for easy field wiring

Introduction

The DB-24SSR/DB-24SSRDC includes 24 normally open, or form A, solid-state relays The board interface to filed logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The user can use the DB-24SSR/DB-24SSRDC to switch high voltage load, up to 240 VAC/50 VDC and up to 4 A. The relay is energized by applying a 5-voltage signal to the appropriate relay channel on the 50-pin header or 37-pin D-sub connector. Twenty-four enunciator LEDs, one for each relay, light when their associated relay is activated. Because there is a D-sub 37-pin connector on the board, the user may use it to interface to any TTL output board. In other words, the user may use it as a general purpose solid state relay output board.

Specification

Relay Output
Channels	24 X FORM A
Type	SSR
Contact Rating	4 A @ 240VAC
Operate Time	1/2 cycle of voltage sina wave 1ms (max)
Electrical Endurance	Long Life, No Arcing, No Bounce, No Switching Noise

Power
Consumption	0.4 A @ +5 V (max.)

Mechanical
Dimensions (mm)	130 mm x 220 mm x 32 mm (W x L x H)

Environmental
Operating Temperature	0 ~ 60°C
Storage Temperature	-20 ~ 70°C
Humidity	5% ~ 90% RH, non-condensing

Download

Documents

Ordering information

DB-24SSR/D

24-ch AC-Type Solid-State Relay Board
Include: CA-3710 (DB37 Male to Male, 45º, 1M)

Bo mạch 24 kênh đầu ra Relay SSD AC ICP DAS DB-24SSR/D
