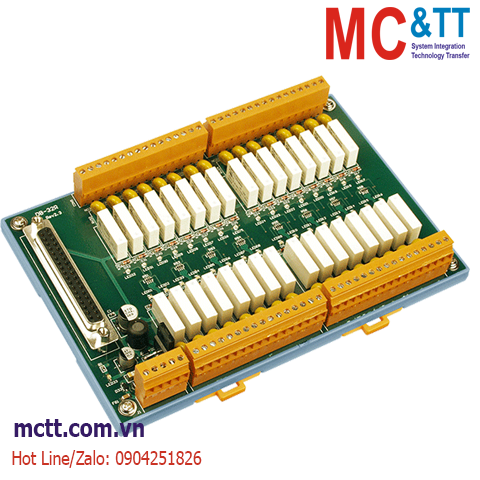

Bo mạch kết nối 32 kênh đầu ra Relay ICP DAS DB-32R CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

32-ch Form A, 3A Relay Board with DIN-rail Mounting

Feature

32 Form A Signal Relay.
The DB-32R accepts 37-pin connectors to control 32 Form A relays for use with PISO-C64 and ISO-C64.

Introduction

Application

Specifications

Relay Output
Channels	32 x FORM A
Type	Signal Relay
Contact Rating	250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute) 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute)
Operate Time	10 ms (typical)
Release Time	10 ms (typical)
Electrical Endurance	250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute), 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute)
Mechanical Endurance	20,000,000 ops. At no load. (300 ops./minute)

Power
Input Range	+12 ~ 30 VDC
Consumption	0.25 A @ +24 V Max.

Mechanical
Dimensions (mm)	118 mm x 174 mm
Installation	DIN-rail mounting

Download

Datasheet

Documents

Ordering Information

DB-32R CR

32-ch Form A, 3A Relay Board with DIN-rail Mounting (RoHS)
Include: CA-3710D (DB37 Male to Male, 180º, 1M)
