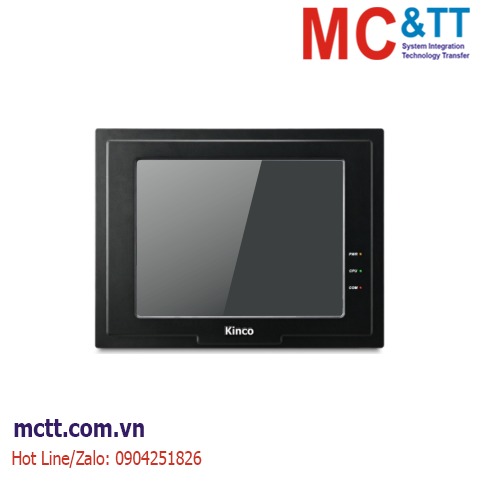

Màn hình cảm ứng HMI 12.1 inch Kinco F121E (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet)

Thương hiệu: Kinco | Tình trạng: Còn hàng
Liên hệ

12.1", 1024×768, 16.77M Colors, 2×USB Host, 1×SD port, 3×Serial port, 1×Ethernet

Gọi +84 904251826 để được trợ giúp

Màn hình cảm ứng HMI 12.1 inch Kinco F121E (3 COM, 2 USB Host, 1 SD Card, 1 Ethernet)

Tính năng

  • Industrial-grade CPU with a frequency of 1GHz;
  • 12.1-inch HD LCD screen with 16.77 million true colors and full viewing angle display;
  • 4GB eMMC large memory+512MB DDR3 memory;
  • Expandable storage: 1×SD+2×USB Host;
  • 3 serial ports, all of which are isolated;
  • Built-in isolation power supply and PCB protection;
  • Support access to webcams, and achieve real-time dynamic control;
  • Support OPC UA, MQTT and other IoT protocols, Siemens tag protocol, etc

Thông số kỹ thuật

Performance specification

 Display size

12.1" TFT

 Resolution

1024*768 pixel

 Display color

 16.77M color

 Backlight

 LED

Display angle of view 88/88/88/88 (left/right/up/down)

 Brightness

 500cd/m2

 Backlight life

 More than 50000 hours

 Touch Panel

 4 wire precision resistance network (surface hardness 4H)

 CPU

32bit RISC Cortex-A9 1GHz

 Storage

512MB DDR3 + 4GB eMMC

 RTC

Built-in RTC+32KB

 Extensible memory

2 USB Host + 1 SD Card

 Printer port

 USB Host/ Serial port

 Ethernet

LAN0: 10/100MHz self-adaption

Extended interface 1*CANopen

 Program download

USB Slave/U Disk

 COM port

COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232
Audio output 1*Audio output

Electrical specification

Input power supply

DC12V~DC28V,Built-in isolation power supply

Rated power

18W @24V DC

Allowable loss of power

 <3ms

Insulation resistance

Over 50MΩ@500V DC

Hi-pot test

500V AC 1 minute

 Structure specification

PCB coating (Yes/No) Yes

 Shell material

Engineering plastic

 Dimensions(mm)

350x264x48.9mm

 Cutout size(mm)

328x242mm

 Weight

3.6 Kg

 Environment specification

Operating temperature

-10~55℃

 Operating humidity

 10~90% non-condensing

 Storage temperature

 -20~60℃

 Storage humidity

 10~90% non-condensing

 Shockproof test

 10~500Hz, 30m/s², X,Y,Z direction/hour

 Cooling method

 Natural air cooling

 Certification

 Degree of protection

Conforming to IP65 certification (4208-93)

CE certification

EN IEC61000-6-4:2007+A1:2011,EN IEC61000-6-2:2005

Software

Configuration software

Kinco DTools V3.5.3 and above version

Thông tin đặt hàng

  • F121E

12.1", 1024×768, 16.77M Colors, 2×USB Host, 1×SD port, 3×Serial port, 1×Ethernet

Tài liệu

Datasheet

User Manual

Software

Kinco DTools V4.0.0.1(Build 230213)230215.zip
