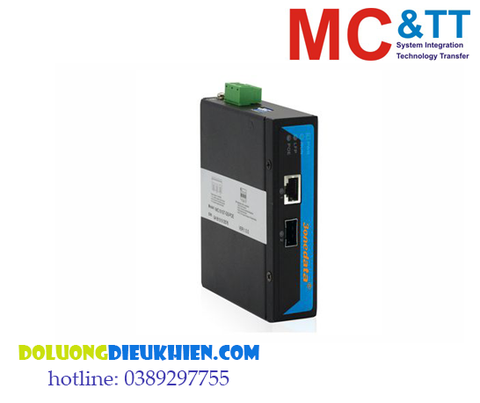

IPMC101GT-GS-POE: Bộ chuyển đổi quang điện công nghiệp 1 cổng PoE Gigabit Ethernet + 1 Gigabit SFP 3Onedata
The IPMC101GT-GS-POE device is a kind of industrial Gigabit PoE media converter, it support 1 10Base-T/100Base-TX/1000 Base-TX port and 1 1000Base-X SFP port. These converters are classified as power source equipment (PSE), and when used in this way provide up to 30 watts to IEEE802.3af/at compliant powered devices (PDs), eliminating the need for additional wiring. It support LFP function, it is easy to check the network connection status, it also support CE, FCC standard, adopt industry standard design, IP40 protection, rugged high-strength metal case, power supply input(48VDC), -40 to 60°C working temperature. The converters support IEEE802.3/ IEEE802.3u/ IEEE802.3x/ IEEE802.3ab/ IEEE802.3z with 10/100/1000M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.
Features
1.Support 1 10/100/1000Base-TX port and 1 1000Base-X SFP port
2.Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.3af/at, store and forward
3.Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4W)
4.Ethernet port support 10/100/1000M self-adaption and PoE function
5.Support LFP (Link Fault Pass-Through)
6.Support huge increase in packet mode
7.DC48V power input, reverse connection protection
8.IP40 protect grade, high strength iron shell, DIN Rail installation
9.Industrial grade 4 design
Specification
Technology
Standard: Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.3af/at
Flow control: IEEE802.3x flow control, back press flow control
Exchange attribute
100M forward speed: 148810pps
1000M forward speed: 1488100pps
Transmit mode: store and forward
System exchange bandwidth: 12G
MAC address table: 8K
Memory: 1Kbits
Exchange delay time: < 10μs
Interface
RJ45 port: 10Base-T/100Base-TX/1000Base-TX Self-adaption, Half/full duplex and MDI/MDI-X auto detect
Gigabit SFP port: 1000Base-X SFP slot
POE Pin-out: 1/2(+), 3/6(-)
Transfer distance
Twisted cable: 100M (standard CAT5/CAT5e cable)
Multi-mode: 1310nm, 2Km
Single-mode: 1310nm, 20/40Km
1550nm, 60/80/100/120Km
LED indicator
Run indicator: Run
Interface indicator: Link (1~2)
Power supply indicator: PWR
LFP Alarm indicator: LFP
PoE indicator: POE
Power supply
Input Voltage: 48VDC (45~55VDC)
Type of input: 3 bits terminal block
No-load consumption: 2.3W@48VDC
Full-load consumption (full PD): 30W@48VDC
Working environment
Working temperature: -40~60℃
Storage temperature: -40~75℃
Relative Humidity: 5%~95 %( no condensation)
Mechanical Structure
Shell: IP40 protect grade, metal shell
Installation: DIN-Rail or Wall mounts
Weight: 390g
Size (W×H×D): 36mm×110mm×97mm
Industry Standard
EMI: FCC Part 15, CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Certification
CE, FCC, RoHS, UL508 (Pending)
Warranty: 5 years
Packing List
1. Industrial PoE media Converter (plus terminal block) ×1
2. User manual ⅹ 1
3. Certificate of quality ⅹ 1
4. Warranty card ⅹ 1
5. DIN-Rail mounting kit ⅹ 1

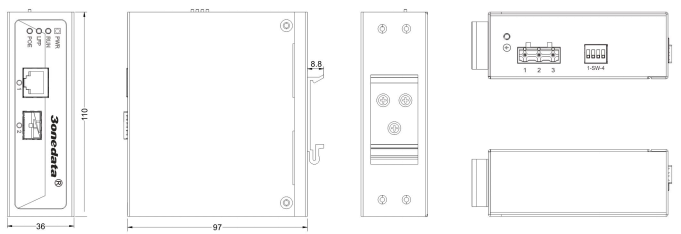

Dimension
Download
Ordering Information
IPMC101GT-GS-POE: Bộ chuyển đổi quang điện công nghiệp 1 cổng PoE Gigabit Ethernet + 1 Gigabit SFP

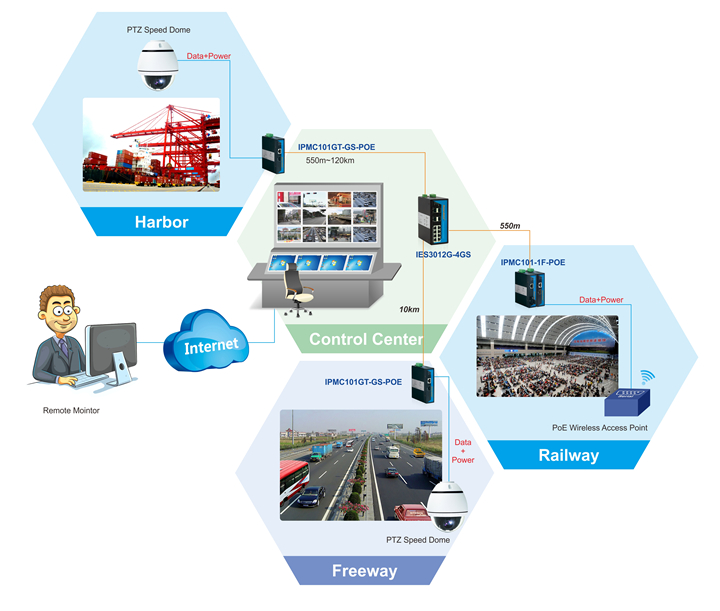

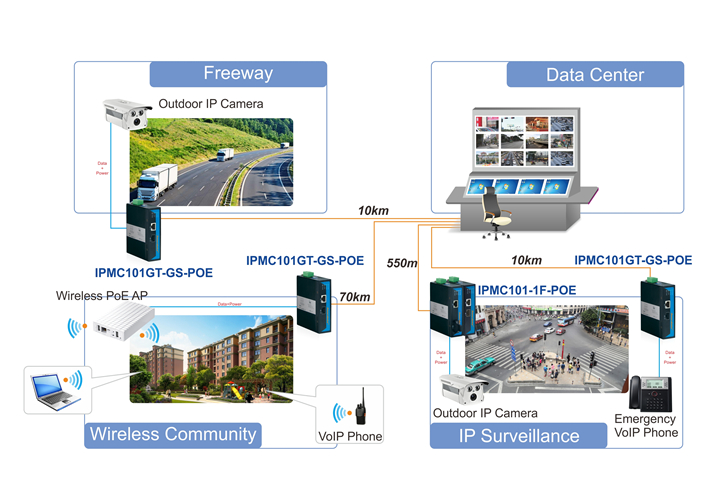

Applications
