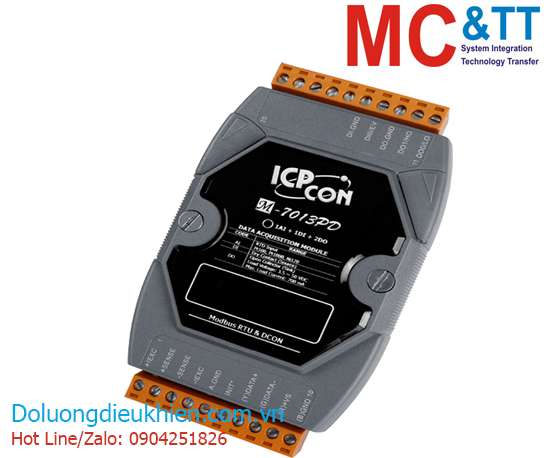

Module RS-485 Modbus RTU 1 kênh đầu vào RTD + 2 kênh DO + 1 kênh DI ICP DAS M-7013PD-G CR

Features

• High/Low Alarm for Digital Output
• 50Hz Event Counter for Digital Input
• ±120 VDC Overvoltage Protection
• 1-channel RTD Input
• Lead Resistance Elimination for 3/4-wire Connection
• Open Wire Detection
• 3000 VDC Intra-module Isolation
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

Introduction

The I-7013(D) and M-7013P(D) is a 1-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 type sensors. The module allows 2/3/4-wire RTD connections and features open wire detection. In addition, the I-7013(D) and M-7013P(D) also includes 3000 VDC intra-module isolation and supports lead resistance elimination for 3/4-wire connections. The M-7013P and M-7013PD added support for 1-channel digital input as 50 Hz event counter and 2-channel digital output as high/low alarm. The M-7013P and M-7013PD support both the Modbus RTU and DCON protocols, which can be configured via software.

Specification

CPU Module
Watchdog Timer Yes, Module (1.6 Seconds), Communication (Programmable)



Display
Type 5-Digit 7 Segment LED Display



Isolation
Intra-module Isolation 3000 VDC



EMS Protection
EFT (IEC 61000-4-4) ±4 kV to Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±4 8 kV Air for random point
Surge (IEC 61000-4-5) ±0.5 kV for Power Line



LED Indicators
Status 1 x Power and Communication



Analog Input
Channels 1
Type RTD
Sensor Type Pt100, Pt1000, Ni120
Resistance Measurement 3.2 kΩ Max.
Resolution 16-bit
Accuracy ±0.05%
Sampling Rate 10 Hz
Overvoltage Protection ±5 VDC
Individual Channel Configuration No
Open Wire Detection Yes
3-wire RTD Lead Resistance Elimination Yes



Digital Input/Counter
Type Dry Contact
Sink/Source (NPN/PNP) Source
Dry Contact, ON Voltage Level Close to GND
Dry Contact, OFF Voltage Level Open
Max. Counts 16-bit
Frequency 50 Hz
Overvoltage Protection ±30 VDC



Digital Output
Channels 2
Type Open Collector, MOSFET
Sink/Source (NPN/PNP) Sink
Load Voltage 3.5 ~ 50 VDC
Max. Load Current 700 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A (with Short-circuit Protection)
Power on Value Yes
Safe Value Yes



COM Ports
Ports 1 x RS-485
Baud Rate 1200 to 115200 bps
Data Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol Modbus RTU, DCON



Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.2 W



Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail



Environmental
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

M-7013PD-G  CR  1-ch RTD Input Module with 1 DI, 2 DO and LED Display using DCON and Modbus Protocols (Gray Cover) (RoHS)
