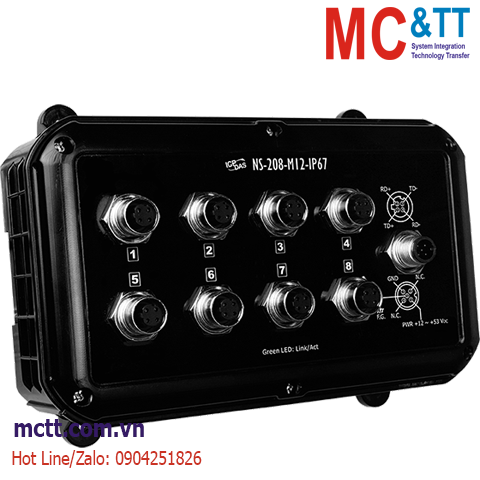

Switch công nghiệp 8 cổng Ethernet IP67 ICP DAS NS-208-M12-IP67 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

8-port M12 Unmanaged Ethernet Switch with IP67

Gọi +84 904251826 để được trợ giúp

Switch công nghiệp 8 cổng Ethernet IP67 ICP DAS NS-208-M12-IP67 CR

Feature

• Each port supports both 10/100 Mbps speed auto negotiation
• 8-port 10/100 Mbps M12 type connector with IP67 protection
• Full duplex IEEE 802.3x and half duplex backpressure flow control
• Automatic MDI/MDI-X crossover for plug-and-play
• Store-and-forward architecture

Introduction

The NS-208-M12-IP67 is designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock. The Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provides an economical solution for your industrial Ethernet network. The NS-208-M12-IP67 provides a wide +12 VDC ~ +53 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.

Application

Specifications

LED Indicators
Status PWR, Link/Act
Ethernet
Ports 8 x M12 connector, 10/100Base-TX
Standards IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
Processing Type Store & forward
MAC Table 1024
Memory Bandwidth 3.2 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE 802.3x flow control, back pressure flow control
Isolation 1500 Vrms 1 minute
Connector Female 4-Pin shielded M12 D-coding connector
Power
Reverse Polarity Protection Yes
Input Range +12 VDC ~ +53 VDC
Consumption 0.12 A @ 48 VDC
Mechanical
Casing Plastic
Dimensions (mm) DIN-rail mounting: 190 x 112 x 62 (W x L x H)
Wall mounting: 190 x 134 x 62 (W x L x H)
Installation DIN-rail mounting or wall mounting
Ingress Protection Rating IP67
Environment
Operating Temperature -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Storage Temperature -10 °C ~ +60 °C (Protection rating IP67)
-40 °C ~ +75 °C (Protection rating IP66)
Humidity 100% RH for Operating Temperature -10 °C ~ +60 °C
10% ~ 90% RH, non-condensing for Operating Temperature -40 °C ~ +75 °C

Download

Datasheet

Documents

Ordering Information

NS-208-M12-IP67     CR  8-port M12 Unmanaged Ethernet Switch with IP67 (RoHS)
Includes M12D-4P-IP68 x 8, A-CAP-M12M x 8, M12A-5P-IP68 x 1 and A-CAP-M12F x 1
