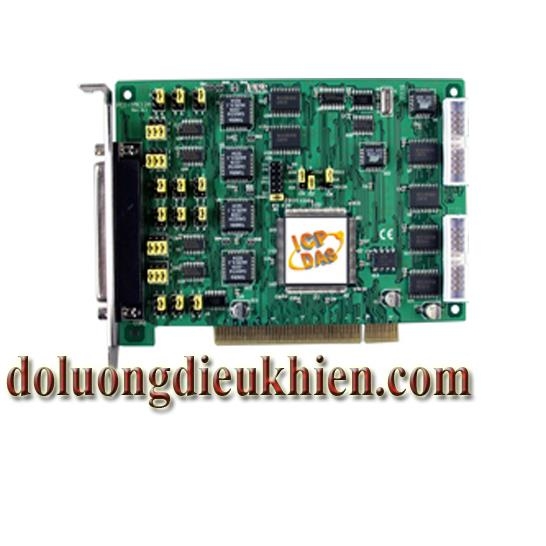

PCI-TMC12A 12-channel Timer/Counter Board Includes one CA-4002 D-Sub connector

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ
4 onboard 8254 timer/counter chips
12 independent 16-bit timers/counters
12 external clock inputs
12 external gate control inputs
12 timer/counter output channels
16-bit timer
Gọi +84 904251826 để được trợ giúp

PCI-TMC12A 12-channel Timer/Counter Board Includes one CA-4002 D-Sub connector







Digital Input
Channels 16
Channels 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 2.0 MHz (Typical)
Digital Output
Channels 16
Compatibility 5 V/TTL
Output Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Output Capability Sink: 24 mA @ 0.8 V
Source: 15 mA @ 2.0 V
Response Speed 2.0 MHz (Typical)
Timer/Counter
Channels 12 (Independent x 12)
Resolution 16-bit
Compatibility 5 V/TTL
Input Frequency 10 MHz max.
Reference Clock Internal: 8 MHz
General
Bus Type 5 V PCI, 32-bit, 33 MHz
Data Bus 16-bit
Card ID No
I/O Connector Female DB37 x 1
20-pin box header x 2
Dimensions (L x W x D) 150 mm x 105 mm x 22 mm
Power Consumption 500 mA @ +5 V
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
