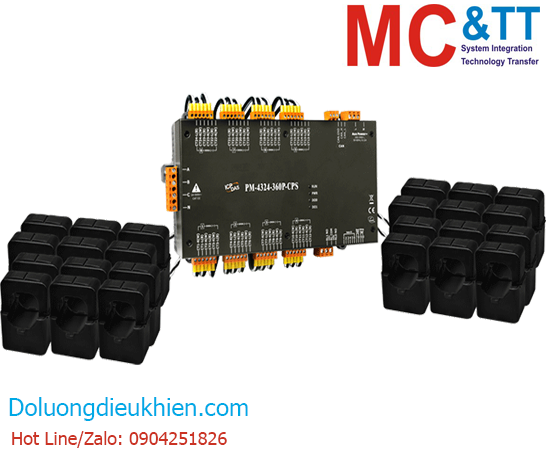

Thiết bị đo điện thông minh 3 pha 8 kênh hoặc 1 pha 24 kênh 300A RS-485 Modbus RTU ICP DAS PM-4324-360P CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Multi-circuit Smart Power Meter

THÔNG TIN SẢN PHẨM

Features

• Bi-directional Energy
• 8 Three Phase Circuits or 24 Single Phase Circuits
• True RMS Power Measurements
• Energy Analysis for 3P4W, 3P3W, 1P3W, 1P2W
• Current Measurements Up to 300 A with Different CT Ratio
• Voltage Measurements Up to 500 V
• Easy install with split core CT
• W Accuracy Better than 0.5% (PF=1)
• Total Harmonic Distortion (THD)
• Support Modbus RTU Protocol
• Support 2 Power Relay Output (Form A)

Introduction

The PM-4324 series multi-circuit power meter monitors up to 8 three-phase circuits or 24 single-phase circuits, or any combination of single or three-phase circuits. The PM-4324 series can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 series perfect for multi-tenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panelboards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device. The PM-4324A is the same model as the PM-4324, except for the AC Measurement. The PM-4324A has 2 separate main circuit inputs that can use in the different power system.

Application

• Generator monitoring
• Switchgear distribution systems
• Energy Management
• Power quality analysis

Specification

AC Power Measurement
Wiring	3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Loops	Multi-circuit
Input Voltage	10 ~ 500 V
Input Current	CTØ36 mm (0.3 A ~ 300 A)
Input Frequency	50/60 Hz
W Accuracy	Better than 0.5% (PF=1)
Power Parameter Measurement	True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency
Data Update Rate	1 Second

CT
Includes CTs	24
Type	Clip
Max. Current	300 A
Inside Diameter	36 mm
Leading Cable	4 mm

COM Ports
Ports	1 x RS-485
Baud Rate	9600, 19200 (default), 38400, 115200; DIP Switch Selectable
Data Format	N,8,1; N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Protocol	Modbus RTU
Isolation	3000 VDC

Power
Input Range	+85 ~ +264 VAC (277 VAC available)
Consumption	6 W
Alarm Contact	Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC

Mechanical
Casing	Matel
Dimensions (mm)	237 x 57 x 134 (W x L x H)
Installation	DIN-Rail & wall mounting

Environmental
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-25 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

PM-4324-360P CR

Modbus RTU, Multi-Circuit Power Meter; includes 300A CT (Inside diameter 36 mm; wire lead 4 m) x 24 (RoHS)
