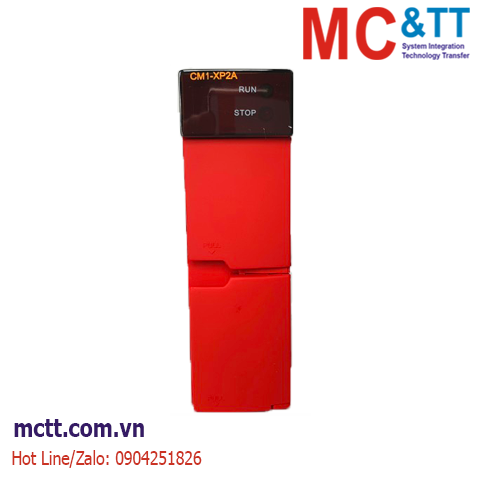

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule CPU Cimon CM1-XP2A
Features
PID Control
It operates 32Loops PID without PID module.
RTC (Except CP*A type)
It reads time from RTC and save it in F memory device.
Input and Output Reservation
It scans and detects module at designated slot.
It refers to reservation function which writes a program without I/O change in case of extension,
damage or module replacement.
Online Edit
Scan program can be edited when CPU is RUN mode(Online).
RS-232 Port (XPnB, CP3C, CP3E, CP4E/F)
RS-422/485 Port (CP4D/U, CP4F)
Watch-Dog Timer
It detects delayed operation error in program.
Module installation in Slot
It detects whether module is installed in slot.
Memory Error
In case of Error in Flash memory of CPU module or Dual Port Ram of Special module, Error will save
in F memory device.
Battery Error
If battery goes down under standard voltage, F3.4 will be turned ON.
Power Error
If input voltage to Power module is lower than standard range, RUN and STOP lamp will blink.
Performance Specification
|
Items |
Items |
|||
|---|---|---|---|---|
|
CM1-XP1A/B/E/R |
CM1-XP2A/B/E |
CM1-XP3A/B/E |
||
|
Program Control Method |
Stored Program, Cyclic operation, Time Driven Interrupt |
|||
|
I/O Control Method |
Interrupt system, Direct by Instructions, Scan Synchronous Batch Processing System. |
|||
|
Program Language |
IL, LD, SFC(Sequential Function Chart), FBD(Function Block Diagram) |
|||
|
FBD Extension – XPnB, XPnE only |
||||
|
SFC(Sequential Function Chart) – XPnB, XPnE only |
||||
|
Data Processing Method |
32 Bit |
|||
|
Instructions |
Sequence |
55 Instruction |
||
|
Application |
389 Instruction |
|||
|
Processing speed |
75ns / Step (Sequence) |
|||
|
Program Capacity |
128K Step |
64K Step |
64K Step |
|
|
2Mbyte |
2Mbyte |
2Mbyte |
||
|
BASE Extension |
Extendable (Maximum 16 Bases) |
|||
|
Data memory capacity |
1Mbyte |
|||
|
Device Memory |
X |
8,192 points |
4,096 points |
2,048 points |
|
Y |
||||
|
M |
16,000 points |
|||
|
K |
16,000 points |
|||
|
L |
16,000 points |
|||
|
F |
2,048 points |
|||
|
T |
4,096 points (Select 10ms or 100ms) |
|||
|
C |
4,096 points |
|||
|
S |
100Card * 100Step |
|||
|
D |
32,000 words |
|||
|
Z |
1,024 words |
|||
|
Q |
512 words (XPnB/E only) |
|||
|
R |
6 words |
|||
|
Timer |
Types |
On delay, Off Delay, Integration, Monostable, Retriggerable |
||
|
Time range |
0.01sec ~ 6,553.5sec |
|||
|
Counter |
Types |
Up Counter, Down Counter, Up-Down Counter, Ring Counter |
||
|
range |
-32,768 ~ +32,767 |
|||
|
Operation modes |
LOCAL or REMOTE (RUN, STOP, PAUSE MODE) |
|||
|
Self-Diagnosis |
Watchdog timer, Memory error, I/O error, Battery error, Power error detection |
|||
|
Battery Back-up |
Over 8 years |
|||
|
Built-in Function |
|
|||
