DO 16*DC24V (PNP)
Module 16 đầu ra số Kinco K622S-16DT

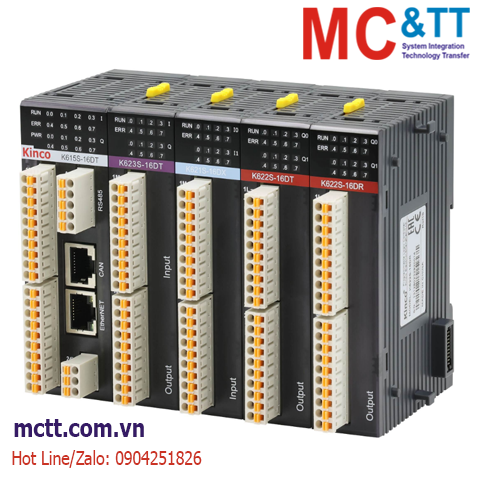

Kinco K6S series PLC is a compact modular PLC. The modular plug-in design saves more than 50% of the horizontal installation space, and the wiring can be tightened without tools, making the installation and maintenance process simpler and more efficient. The "simplified" appearance design is also equipped with a powerful core, which integrates high-speed input/output, Ethernet, CAN, RS485 and other conventional functional interfaces, further improving the flexibility, reliability, efficient control and other performance of Kinco PLC. Indicators provide reliable control solutions for industrial automation systems.
Tính năng
Thông số kỹ thuật
Model | K622S-16DT |
Overview | 16-channel PNP type digital output |
Type | Transistor Outputs PNP (source type) |
Channels | 16 channels(8 channels/group) 16DO |
Power Supply | Powered by Expansion Bus |
Isolation | Optical isolation, 500VAC/min |
Rated Output Voltage | DC20.4V ~ DC28.8V |
Output Current per Channel | 300mA@24VDC |
Output Leakage Current | 10μA |
Output Impedance | 0.20Ω |
Output Delay | Turn-on <30μs Turn-off <50μs |
Protection | Inductive load output protection Output polarity reversal protection Short-circuit protection |
Dimension | 27x75.15x106mm |
Expansion Module
K621S-16DX | DI 16* DC24V (NPN/PNP) |
K622S-16DT | DO 16*DC24V (PNP) |
K622S-16DR | DO 16*Relay |
K623S-16DT | DI 8*DC24V (NPN/PNP), DO 8*DC24V (PNP) |
K622S-16DTN | DO 16*DC24V(NPN) |
K633S-06IV |
12 bit resolution, accuracy 0.3% full scale 4 channel AI: 4-20mA, 1-5V, 0-20mA, 0-10V 2 channel AO: 4-20mA, 1-5V, 0-20mA, 0-10V |
K631S-04TC |
4 channels of thermocouple input support J,K,E,S,T-type thermocouples cold junction compensation, external compensation optional 24-bit resolution, accuraty 0.1% full scale |
K631S-04RD |
4 channels of thermal resistance (RTD) input support PT100, Cu50, PT1000 resistance forms support two-wire, three-wire, connection methods 24 bit resolution temperature: ± 0.6℃; Resistance: ±10 |
Thông tin đặt hàng
DO 16*DC24V (PNP)
