Cảm biến đo Momen xoắn loại trục không quay 2 - 2000 Nm Lorenz DFW-25

Chia sẻ:
Mã sản phẩm: DFW-25
Thương hiệu: Lorenz Messtechnik
Tình trạng: Còn hàng

Torque transducer, non rotation DFW-25, with high torsional stiffness and a nominal torque from 5 N·m - 2000 N·m from Lorenz Messtechnik GmbH

Liên hệ
Mô tả

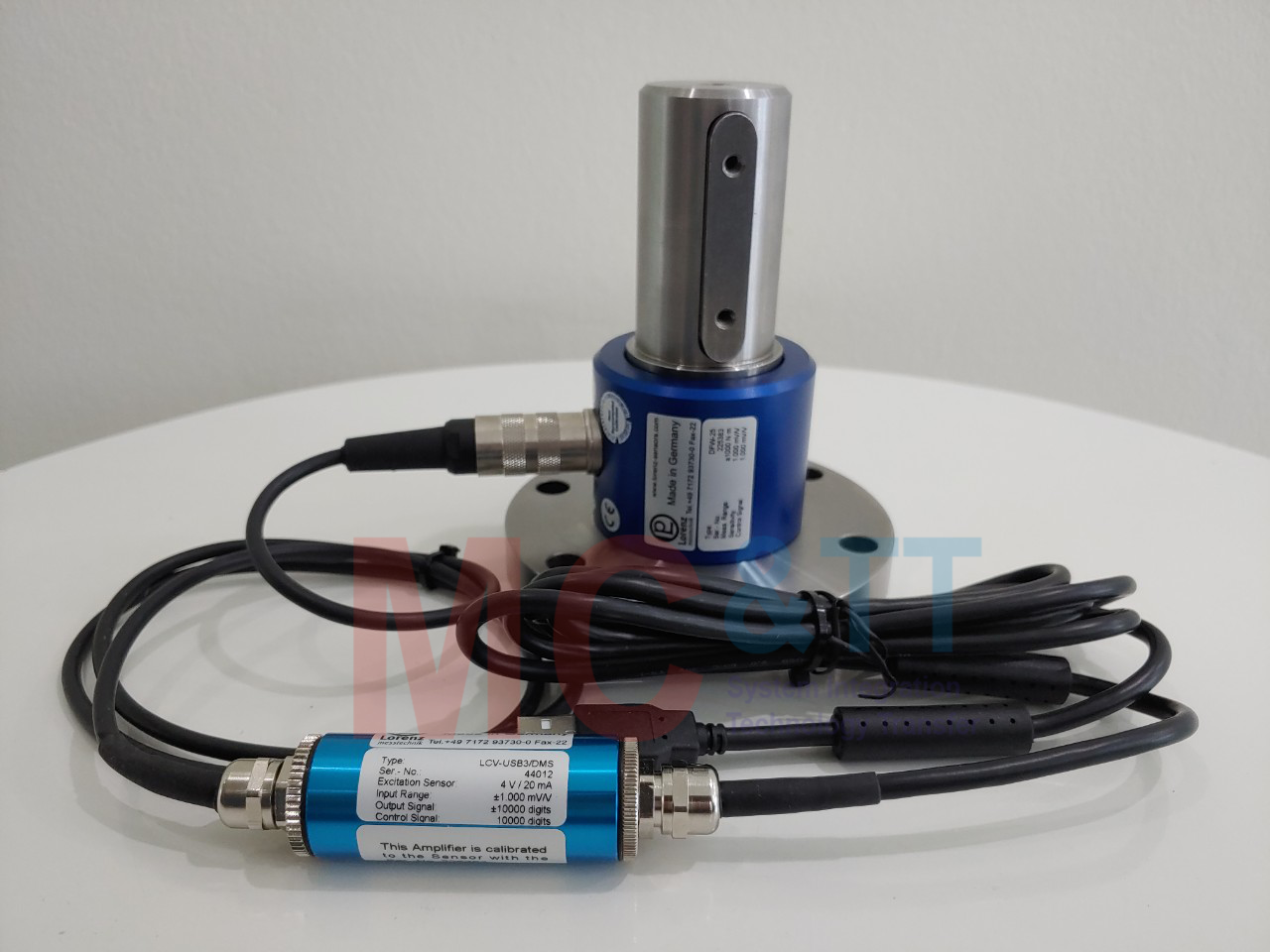

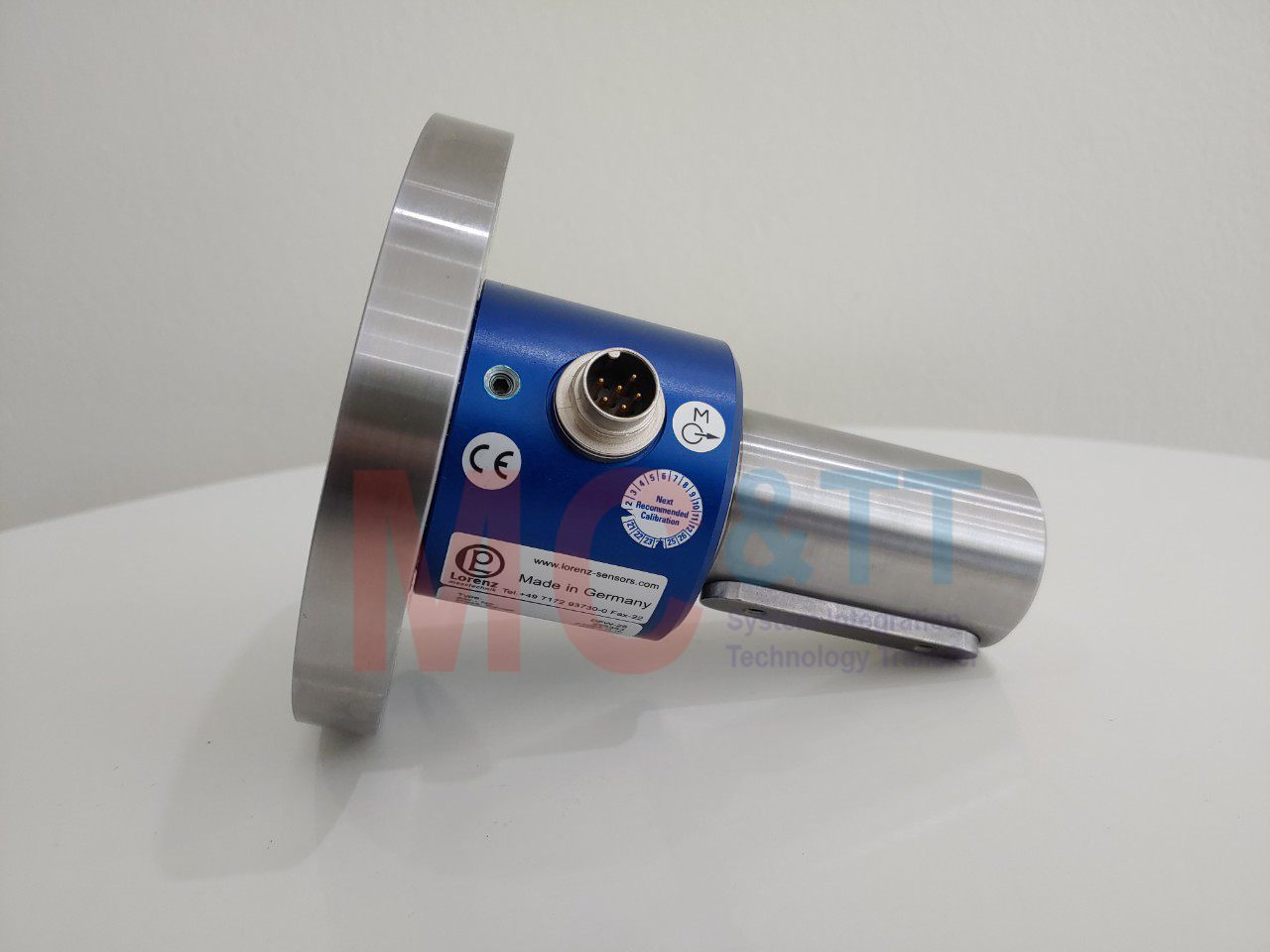

Cảm biến đo Momen xoắn loại trục không quay 2 - 2000 Nm Lorenz DFW-25

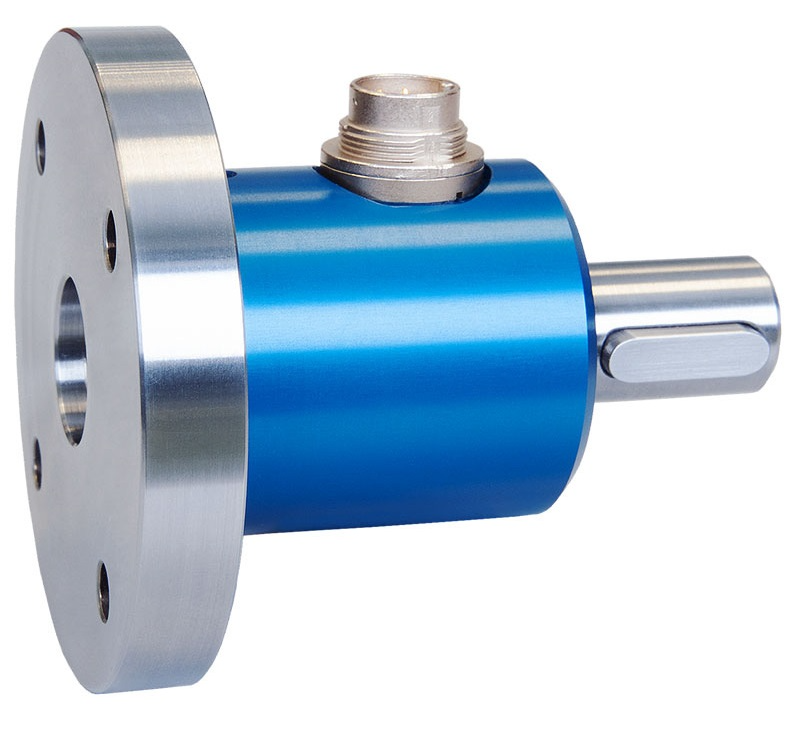

DFW-25, Reaction Torque Sensor
The DFW-25 torque sensor is a reliable and durable unit. Its very short axial length and high torsional stiffness allow for simple handling and simple assembly.

Features:

  • Keyway & Flange Ends
  • Very Short Axial Length

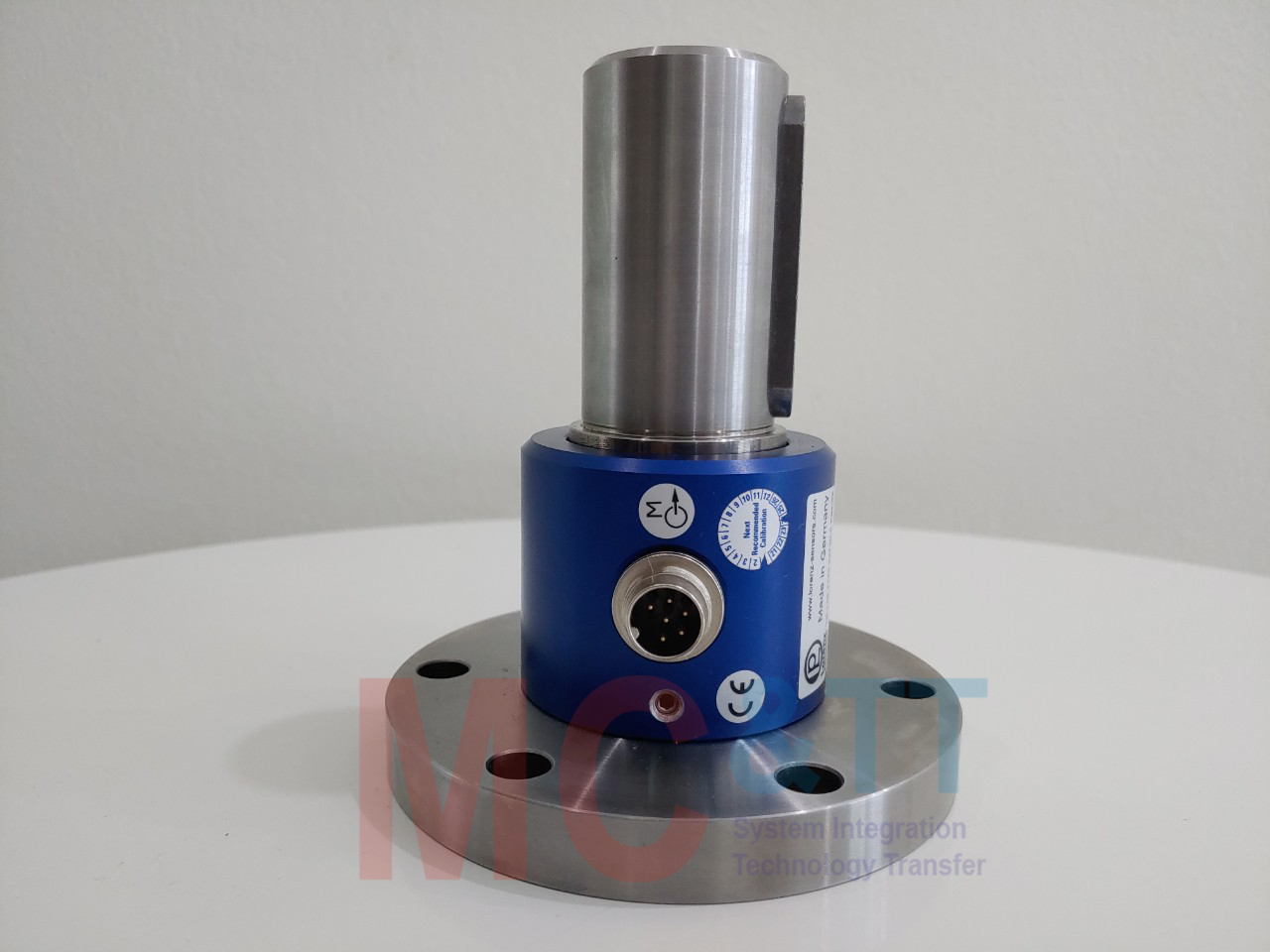

  • Connection: 7-pin Series 712 Connector
  • Special Version on Request

DFW-25 - Specifications

Type Reaction
Full Scale 1 Nm
  2 Nm
  5 Nm
  10 Nm
  20 Nm
  50 Nm
  100 Nm
  200 Nm
  500 Nm
  1000 Nm
  2000 Nm
Output 1 mV/V
Precision ±0.20 % FS
Excitation 2 V - 12 V DC

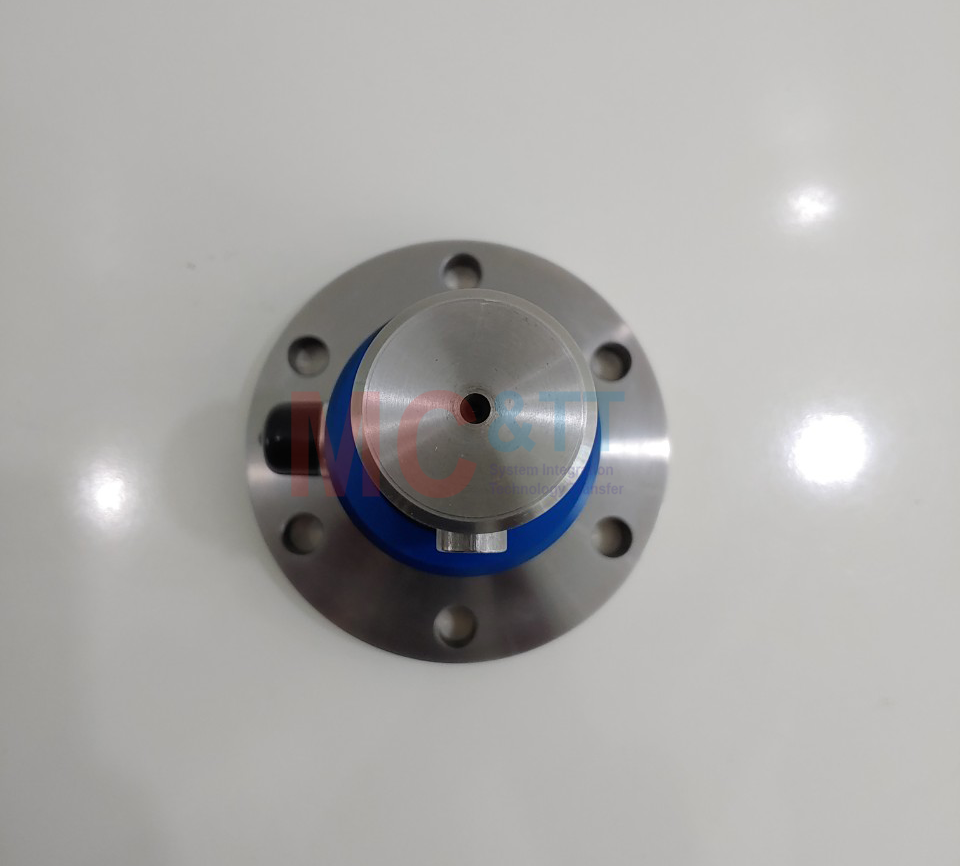

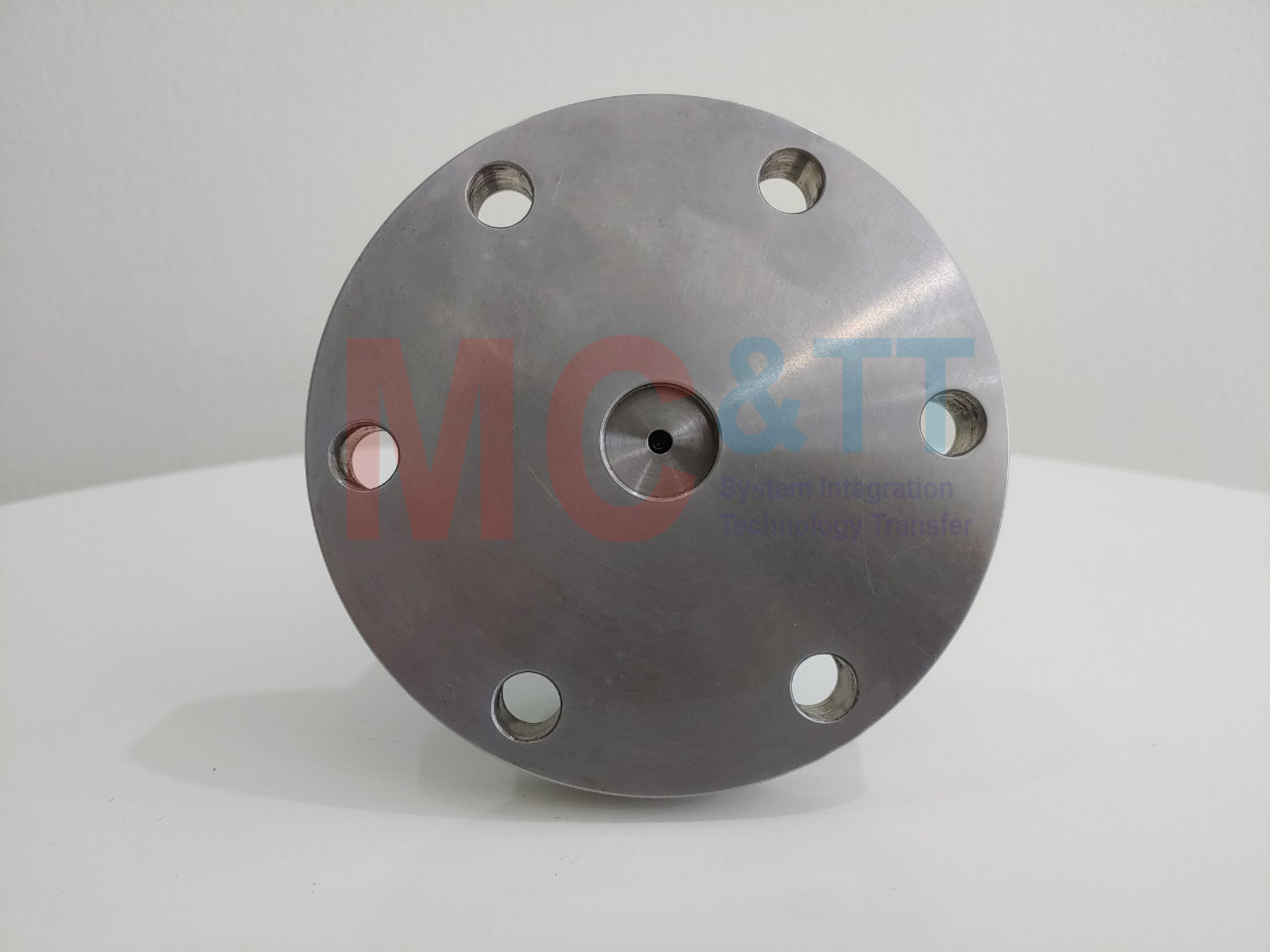

Drive Side Flange

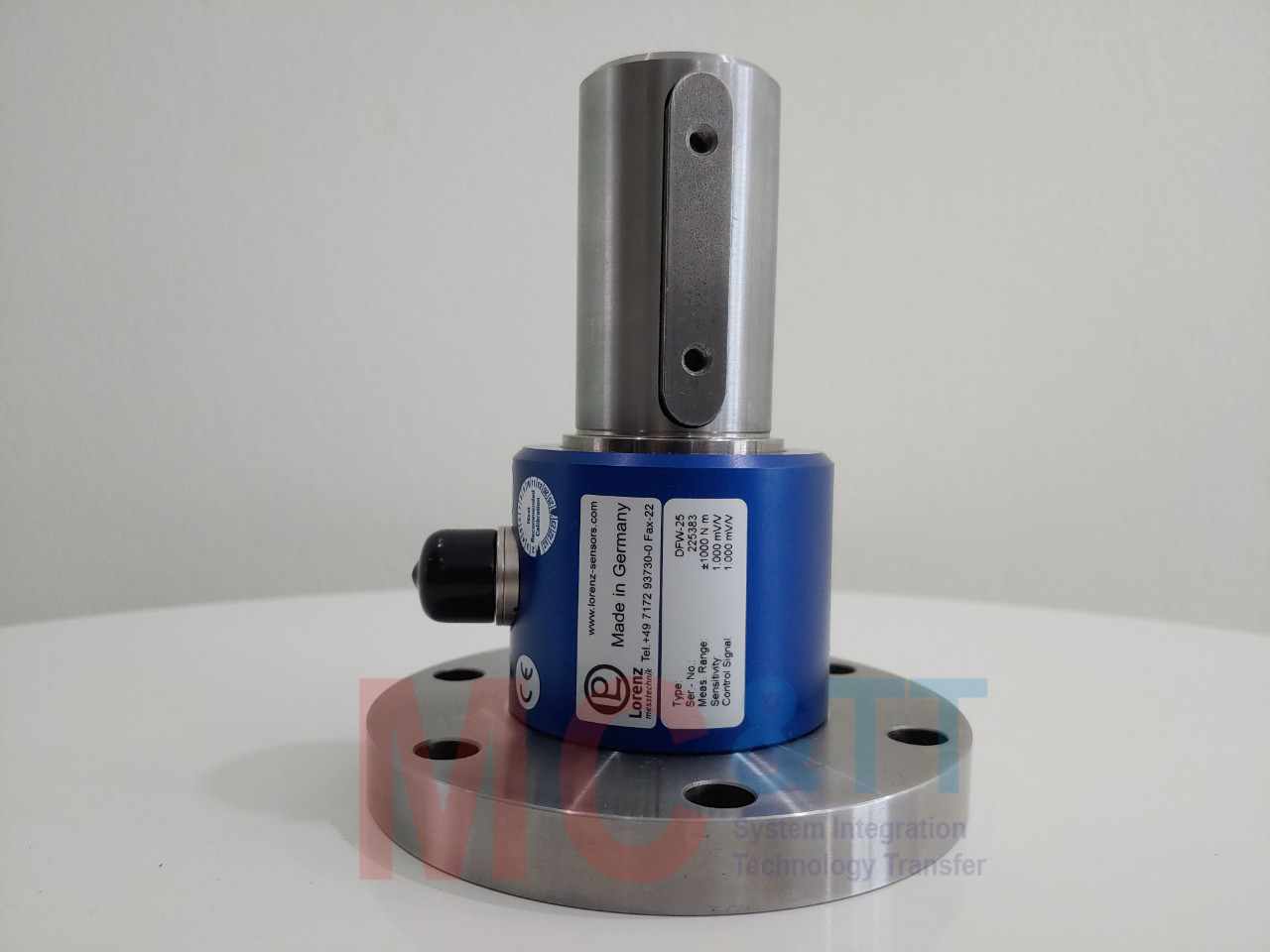

Test Side Round Shaft with Keyway
IP Rating IP50
Min Temperature -15 °C
Max Temperature 55 °C

Download

Suitable Connection Cable
(PDF Datasheet):

Connection cable, 3 m, with 6-pin female cable connector and free soldered ends
Connection cable, 3 m, with 6-pin female angle cable connector and free soldered ends

PDF Datasheet: 080843a_DFW-25_en.pdf
