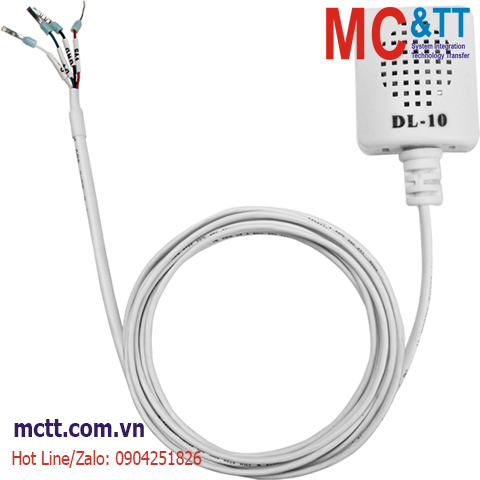

Miễn phí vận chuyển với đơn hàng từ 10.000.000đDL-10 CR: Cảm biến đo nhiệt độ + độ ẩm RS-485 Modbus RTU
Features
Introduction
The DL-10 is a RS-485 remote temperature and humidity module that gives you real time temperature and humidity information at the same time. It contains an RS-485 communication interface and an sensor for measuring temperature and humidity. The DL-10 module supports Modbus RTU communication protocol for getting measured temperature and humidity values. DCON Utility Pro provides easy and convenient interfaces for users to configure the module. Based on an amazing tiny form-factor, the DL-10 achieves the maximum space savings that allows it to be easily installed anywhere.
Specifications
| Temperature Measurement | |
|---|---|
| Range | -20 ~ +60°C (-4 ~ +140°F) |
| Resolution | 0.1°C |
| Accuracy | Typical: ±0.4°C |
| Precision | ±0.1°C |
| Humidity Measurement | |
|---|---|
| Accuracy | Typical: ±3% RH @ 20 ~ 80% RH |
| Precision | ±0.1°C |
| Range | 10 ~ 95% RH |
| Resolution | 0.1°C |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485, Non-isolated |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU |
| Max. Connection | 32 |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.05 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 25 x 20.2 x 30 (W x L x H) |
| Installation | Magnetic mount; Wall mount |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +60°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| DL-10 CR | Remote Temperature and Humidity Sensing Module, Using Modbus RTU Protocol (White Cover) (RoHS) |
