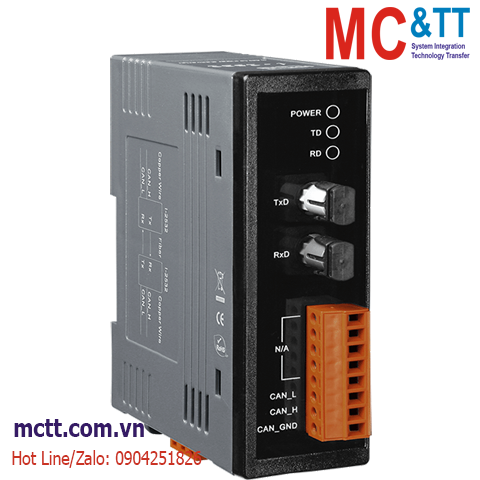

Bộ chuyển đổi CAN sang Quang (Dual Fiber, Multi Mode, ST, 1.4KM) ICP DAS I-2532 CR
I-2532 CR đã dừng, thay thế và nâng cấp thành I-2533 CR
Feature
Introduction
Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, CAN bus is famous in industrial application. In order to solve the problem between different transmission medium, I-2532 is specially designed for converting the electrical CAN bus signal to fiber optic cables. The fiber length between two I-2532s can be up to 1.4km (4593ft), it is mainly decided by the cable attenuation of fiber and the CAN bus baud. I-2532 is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.
Application
Specifications
LED Indicators | |
---|---|
Status | 1 x Power 2 x CAN status |
Fiber | |
---|---|
Ports | Multi Mode; ST connector x 1 |
Fiber Cable | 50/125, 62.5/125 or 100/140 μm (62.5/125μm is recommended) |
Wavelength | 850 nm |
Propagation Delay | 125ns max (125ns delay shortens bus line length by ~ 25 m) |
Distance Between Stations | 1.4 km max (62.5 / 125 μm recommended) |
CAN | |
---|---|
Ports | 1 |
Baud Rate | 10 k ~ 500 k bps |
Terminal Resistor | Switch for 120Ω terminal resistor |
Specification | ISO-11898-2, CAN 2.0A and CAN 2.0B |
Power | |
---|---|
Input Range | +10 VDC ~ +30 VDC |
Consumption | 0.5 W |
Mechanical | |
---|---|
Casing | Plastic |
Dimensions (mm) | 32.3 x 77.5 x 99.0 (W x L x H) |
Installation | DIN-Rail |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 ~ 90% RH, Non-condensing |
Specification Memo
Note1:
The propagation delay depends on the CAN Bus baud rate and the CAN message format. This value has been tested using a CAN baud rate of 1 Mbps, the CAN ID 0x12345678 and 8 bytes of data with a value of 0xFF.
Download
Ordering Information
I-2532 CR | CAN to Multi-mode Fiber Converter; 1 (1.4 km) multi-mode, ST connector (RoHS |
