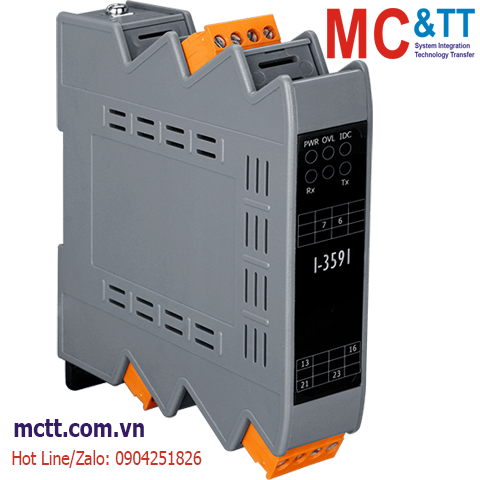

Bộ lặp tín hiệu M-Bus ICP DAS I-3591 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

M-Bus Repeater

THÔNG TIN SẢN PHẨM

Features

Supports M-Bus physical layer
Supports drive up to 100 M-Bus slaves
Auto M-Bus baud rate
M-Bus distance is extended by 1200 meters (at 2400 bps)
M-Bus overloading alarm
Overcurrent and short-circuit protection on the M-Bus port
Reverse polarity protection on power

Introduction

M-Bus (Meter-Bus) is a communication interface widely used in various meters, such as electricity meters, water meters, heat meters, etc. It is easy to install (two-wire system includes power and communication function) and robustness are the most important features. I-3591 is the M-Bus repeater developed by ICP DAS, its main function is to strengthen the driving ability of M-Bus, extend the communication distance of M-Bus, reshape the signal waveform, etc. Provide the M-Bus master with better communication capabilities. I-3591 does not require any settings, it can be used directly after connecting to the line, and easy to use is also one of the main features of I-3591.

Applications

Specifications

M-Bus
Ports	1 Master Port, 1 Slave Port
Baud Rate	Auto-adjust
Isolation	3750 Vrms for photo-couple
Current Protection	short-circuit protection

Power
Consumption	1.6 W @ 24 VDC (with 1 slave device), 9.7 W @ 24 VDC (with 100 slave devices)

Mechanical
Dimensions (mm)	25 x 116 x 120 (W x H x D)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 ℃
Storage Temperature	-30 ~ +80 ℃
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-3591 CR

M-Bus Repeater (RoHs)
