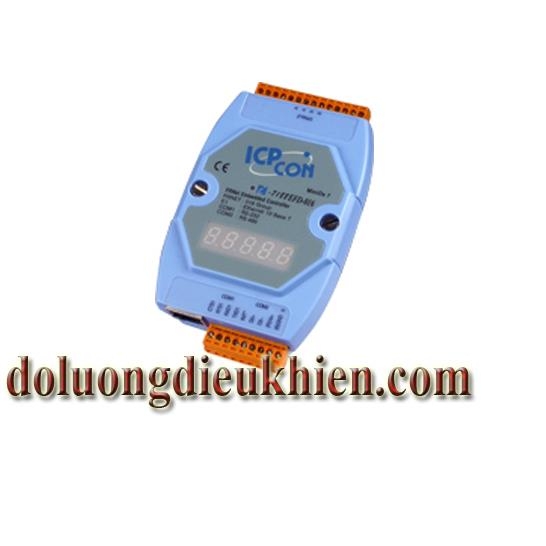

I-7188EFD-016 FRnet μPAC with display

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

FRnet is an innovative industrial field bus that the many special features, such as
High speed deterministic I/O control
Real I/O synchronization capability
Non-protocol communication

Gọi +84 904251826 để được trợ giúp

THÔNG TIN SẢN PHẨM

I-7188EFD-016 FRnet μPAC with display

System

CPU 80188-40 or compatible

EEPROM

2048 bytes (8 blocks, each block contains 256 bytes)

Data retention > 100 years

1,000,000 erase/write cycle

SRAM 512Kb

FLASH ROM

512Kb

Erase unit is one sector (64Kb)

100,000 erase/write cycles

Programs can be download from COM1

Built-in 64-bit hardware unique serial number

Communication

Ethernet Port 10M/10BaseT, RJ-45 Port

COM Port

COM driver support interrupt 1K QUEUE Input Output buffer

COM1: RS232 (CTS, RTS, RXD, TXD, GND)

COM2: RS485 (Data+, Data-)

FRnet Port

Communication speed : 250Kbps

Scan time : 128 input / 128 output points @ 2.88 mS (I-7188EF-016L)

Communication distance : Max. 400m (I-7188EF-016L)

Cable: CPEV 0.9 (2P Twisted-pair wire)

Distributed I/O modules
Max. 8 SA modules, FR-2053 (16 DI)
Max. 8 RA modules, FR-2057 (16 DO)

Each module of FR-2053/FR2057 module is one group.

Built-in WatchDog Timer (0.8 seconds)

Built-in Power Protection and Network Protection Circuit

Real Time Clock

Year-2000 compliant

Displays seconds, minutes, hours, date of the month

Displays month and year from 1980 to 2079

NVSRAM: 31 bytes, battery backup, data valid for up to 10 years

Display

7-segment LED: 5-digit (for I-7188EFD only)

Power

Power requirement 10 - 30 VDC(non-regulated)

Power consumption 2.0W for I-7188EF-016
3.0W for 7188EFD-016

General Environment

Operating temperature -25°C to +75°C

Storage temperature -40°C to +80°C

Humidity

Operating humidity: 10% ~90% RH, non-condensing

torage humidity : 5%~95% RH, non-condensing

Mechanical

Dimensions ( W × H × D ) 123mm × 72mm × 33mm

Installation DIN-Rail, Stack Mounting
