Bộ xử lý và lưu trữ dữ liệu Data Logger 1 cổng CAN Bus ICP DAS CAN-Logger100 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

1-port CAN Bus Data Logger Device

Gọi +84 904251826 để được trợ giúp

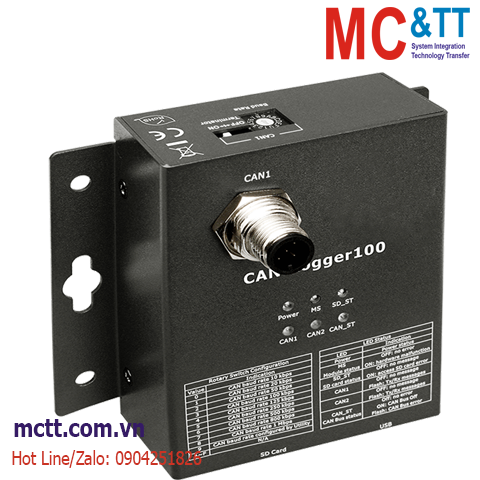

Bộ xử lý và lưu trữ dữ liệu Data Logger 1 cổng CAN Bus ICP DAS CAN-Logger100 CR

Feature

  • Compatible with CAN specification 2.0 parts A and B
  • 2500 Vrms photocoupler isolation on the CAN side
  • Full compatible with the ISO 11898-2 standard
  • Supports CAN bus acceptance filter configuration
  • Max. CAN data flow for a single channel is 15000 fps
  • Programmable CAN bus baud rate from 10 kbps ~ 1Mbps
  • USB 2.0 High Speed Compatibility
  • Supports 4 to 32 GB SDHC type flash for saving CAN messages
  • Built-in jumper for the 120 Ω terminal resistor of the CAN side
  • Power by the USB port or CAN port
  • 3 kV galvanic isolation for the CAN port
  • Provides a configuration utility that can be used to transmit/receive CAN messages

Introduction

The CAN-Logger100 are high-performance intelligent CAN bus data logger device with one/two CAN port that can help to make data collection and to process on a CAN bus network easier and quicker. The powerful CPU of the CAN-Logger devices provide the accurately time-stamp for each CAN message and supports storage media like SD or SDHC type flash for saving these CAN messages that is useful to analysis and diagnostic the CAN Bus network. The CAN-Logger devices use the standard USB HID driver of the Windows system.

Application

  • Control System
  • Building Automation
  • Factory Automation
  • Distributed data acquisition

Specifications

Data Logger
Trigger Log continuously
Time Stamp 10 us
Storage Media SDHC type flash – support 4 to 32 GB
File Format Binary
Configuration Utility tool
LED Indicators
Status 1 x Power
1 x Module status
1 x SD status
3 x CAN status
USB
Specification USB 2.0 High Speed
Transfer Speed 480 Mbit/s, High Speed mode
Connector 1 x USB (Type B) (Utility port)
Driver Built-in Windows 7/8.1/10
CAN
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Terminal Resistor DIP switch for the 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Pin Assignment 1 x 5-Pin male M12
Data Flow 15000 fps for Rx
Power
Input Range +10 VDC ~ +30 VDC or USB power delivery
Consumption 2.5 W
Mechanical
Casing Metal
Dimensions (mm) 102 x 102 x 44 (W x L x H)
Installation Wall Mount
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

CAN-Logger100     CR  1-port CAN Bus Data Logger Device (RoHS)
