2-port CAN PCI-104 Module

THÔNG TIN SẢN PHẨM

Features

• PCI104 compliant
• 9-pin D-sub connector
• Compatible with CAN 2.0 parts A and B
• Fully compatible with ISO 11898-2 standard
• Support CAN bard from 10K to 1M bps
• 2500 Vrms photo couple isolation on the CAN bus
• Built-in jumper to select 120 ohm terminal resister
• 1KV galvanic isolation
• 2 independent CAN channels
• Direct memory mapping to the CAN controller

Introduction

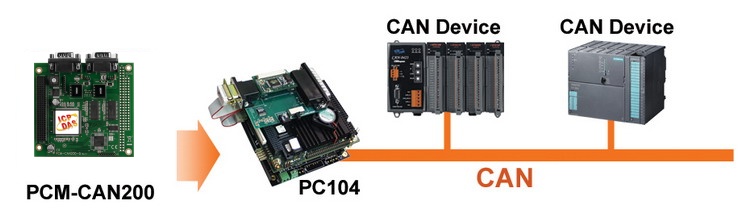

PCM-CAN200-D can represent a CAN solution on a high quality PCI104 hardware in industrial environment compliant with CAN 2.0A and CAN 2.0B specification. It has 2 independent CAN bus communication ports with 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications.

Besides, PCM-CAN200-D uses the CAN controller Phillips SJA1000T and transceiver 82C250/251, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed in a 5V PCI slot and supported truly “Plug & play”

Specifications

Software
Driver	Windows XP/7/8/10 (32-bit/64-bit OS), Linux 2.6.x ~ 4.8.0, LabView, DASYLab, InduSoft
Library	VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0

PC Bus
Type	PCI-104

CAN
Controller	NXP SJA1000T with 16 MHz clock
Transceiver	NXP 82C250
Ports	2
Baud Rate	10 k ~ 1 M bps
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor

Power
Consumption	250 mA @ 5 V

Mechanical
Dimensions (mm)	91 x 22 x 96 (W x L x H)

Environmental
Operating Temperature	0 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Ordering Information

PCM-CAN200-D CR

2-Port Isolated Protection CAN Communication PCI-104 Module with 9-pin D-sub connector (RoHS)
