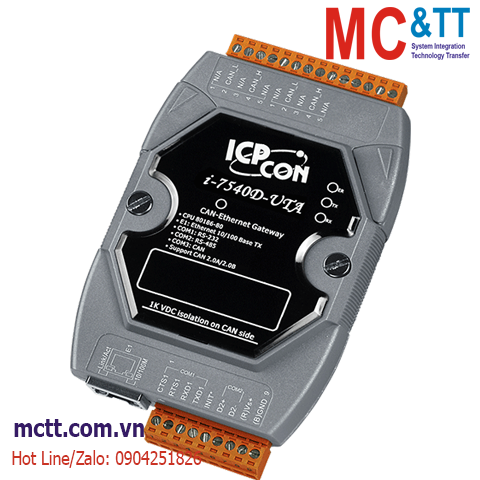

Bộ chuyển đổi CAN sang Ethernet ICP DAS I-7540D-UTA-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

CAN to Ethernet Gateway

THÔNG TIN SẢN PHẨM

Feature

Compatible with the ISO 11898-2 standard
Compatible with CAN specification 2.0A and 2.0B
Support Web Configuration
Support Virtual COM technology
Max transmission speed up to 1M bps for CAN and 115.2kbps for RS-232 & RS-485
Message transmitted by using TCP/IP protocol and maximum 25 Ethernet client connections
Jumper selectable for 120Ω terminal resistor for CAN channel
Wide Operating Temperature Range: -40 ~ +75°C

Introduction

The I-7540D series are CAN to Ethernet converters, and are usually applied as an Ethernet to CAN/RS-232/485 Device Server. They support socket access functions and virtual COM port technology which helps users to get the CAN, RS-232, RS-485 data via virtual COM port. The I-7540D series also provide transparent mode, which enables CAN networks to be coupled together over the Internet/Ethernet, whereby remote monitoring and control is possible. By the features of tiny operating system, protocol independence, small casing and flexibility, it is able to widely fit various RS-232, RS-485 and CAN applications.

Application

Specifications

LED Indicators
Status	1 x Power 3 x CAN status

COM Ports
Ports	1 x RS-232 1 x RS-485 (self-turner ASIC inside)
Baud Rate	110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
Parity	None, Even, Odd
Data Bit	7, 8
Stop Bit	1

Ethernet
Ports	1 x RJ-45, 10/100Base-T(X)

CAN
Controller	NXP SJA1000T with 16 MHz clock
Ports	1
Baud Rate	10 k ~ 1 M bps
Isolation	1000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter	Yes

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	2.5 W

Mechanical
Casing	Plastic
Dimensions (mm)	72 x 122 x 33 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-40 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7540D-UTA-G CR

CAN to Ethernet Gateway with one CAN bus, one RS-232, one RS-485 and one Ethernet (Plastic Case) (RoHS)
