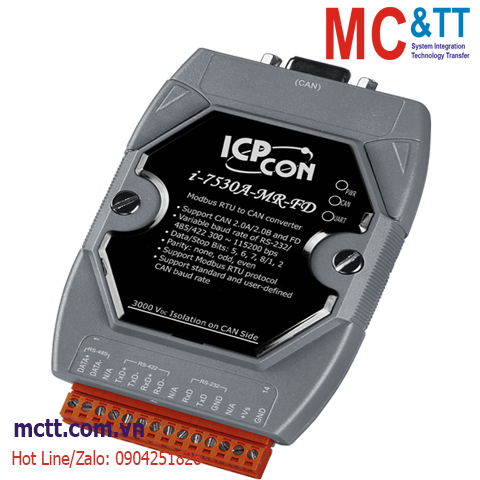

Bộ chuyển đổi Modbus RTU sang CAN ICP DAS I-7530A-MR-FD CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Modbus RTU to CAN Converter

THÔNG TIN SẢN PHẨM

Feature

Fully compatible with ISO 11898-2 standard
Support CAN bus acceptance filter configuration
Support firmware update via RS-232
Provide utility tool for module setting and CAN bus communication testing
Built-in jumper to select 120Ω terminal resistor
Hardware Watchdog design
Convert CAN message to specific ASCII command string (Normal mode)
Convert specific ASCII command string to CAN message (Normal mode)
Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
In Modbus Slave mode, supports function code 0x03, 0x04, 0x06, and 0x10
Support Modbus Master function
Support CAN FD

Introduction

I-7530A-MR-FD supports Modbus RTU protocol on RS-232/422/485 port, it is a Modbus RTU to CAN converter, it supports CAN2.0A/2.0B and CAN FD, and provides user-defined CAN Bus communication baud rate (arbitration field: 10Kbps to 1Mbps, CAN FD data field: 100Kbps to 10Mbps).
And with the special designed firmware, beside normal received CAN message buffer, it offers special memory space to save up to 100 kinds of CAN messages which are urgent and must be processed immediately. The feature helps the PLC, HMI and SCADA to use Modbus RTU function code 3,4,16 to access CAN devices in an easy way.

Modbus RTU Slave/CAN FD Master Mode
In Modbus RTU mode, it allows a Modbus RTU master to communicate with CAN devices on a CAN network. The following figure shows the application architecture of this mode.

Modbus RTU Master/CAN FD Slave Mode
In the Modbus Master mode, it allows many Modbus RTU slaves to communicate with CAN devices on a CAN network. The following figure shows the application architecture in this mode.

Pair-Connection Mode
In pair-connection mode, this module provides the pair connection and transparent communication between the RS-232/485/422 devices via CAN bus. The application architecture may be as follows.

UART Switch Mode
In UART Switch mode, the I-7530A-MR-FD can convert CAN messages to UART ASCII or convert UART ASCII to CAN messages.

Application

• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition

Specifications

LED Indicators
Status	1 x Power 1 x CAN status 1 x UART status

COM Ports
Ports	1 x RS-232 1 x RS-485 1 x RS-422 (these ports can’t be used simultaneously)
Baud Rate	300,600,1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 bps

CAN
Ports	1
Baud Rate	CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10M bps (*Note1)
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Selectable 120Ω terminal resistor by jumper
Specification	ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter	Yes
Pin Assignment	C.I.A. DS-102 (CAN_H=7, CAN_L=2)

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1.5 W

Mechanical
Casing	Plastic
Dimensions (mm)	72 x 118 x 35 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Specification Memo

Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.

Download

Datasheet

Documents

Ordering Information

I-7530A-MR-FD CR

Modbus RTU to CAN Converter (RoHS)
