Bộ lặp và cách ly CAN / CAN FD ICP DAS I-7531-FD-UTA-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

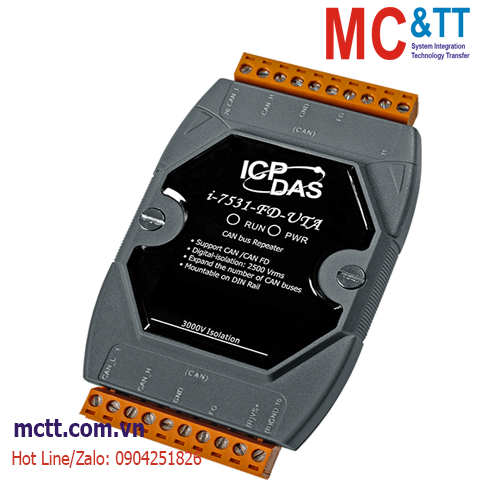

Two-channel Isolated CAN / CAN FD Signal Repeater (-40~+75℃ Operating Temperature)

THÔNG TIN SẢN PHẨM

Feature

Supported CAN specification 2.0A/B and CAN FD
Fully compatible with the ISO 11898-2 standard
Detected CAN bus baud rate automatically, maximum support 8000 kbps
Wide Operating Temperature Range: -40 ~ +75°C

Introduction

The I-7531-FD-UTA is a CAN/CAN FD signal repeater, which can connect two or more CAN networks with the same baud rate, and has a wider operating temperature range than I-7531-FD. Based on the signal repeat function of I-7531-FD-UTA, users can use different numbers of I-7531-FD-UTA to combine tree-shaped and star-shaped CAN network topology, and when there are too many devices on the CAN network, using I-7531-FD-UTA can increase the driving force of the CAN signal to drive more CAN devices. In addition, the CAN side of the I-7531-FD-UTA has a digital isolation of 2500 Vrms, and the CAN side and the power side also provide 3000 V DC-DC isolation protection, which can effectively isolate the noise interference between CAN networks ,and achieve protection the purpose of a specific CAN network.

Application

Specifications

CAN
Ports	2
Baud Rate	CAN bus: 5 k ~ 800 kbps CAN FD: Arbitration rate up to 1000 kbps, data rate up to 8000 kbps (Note) The data rates are verified by tests, but user-defined baud rates are possible, so the maximum data rate will depend on the concrete operating conditions (cable length, remote stations, etc.).
Isolation	2500 Vrms for digital isolation, and 3000 V for DC-DC
Terminal Resistor	Build in 120 Ω terminal resistor and support jumper to select
Specification	ISO-11898-2, CAN 2.0A/B and CAN FD (CAN FD support ISO and Non-ISO standards)
Time Delay	Typ. 175ns (corresponds to ~35m CAN bus length)

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1 W

Mechanical
Casing	Plastic
Dimensions (mm)	72 x 118 x 33 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-40 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7531-FD-UTA-G CR

Two-channel Isolated CAN / CAN FD Signal Repeater (RoHS) (-40~+75℃ Operating Temperature)
