Bộ điều khiển cảnh báo bằng tin nhắn SMS/Voice 3G +1 kênh AI + 6 kênh DI + 2 kênh DO + RS-232/485 Modbus ICP DAS SMS-534 CR

Bộ điều khiển cảnh báo bằng tin nhắn SMS/Voice 3G +1 kênh AI + 6 kênh DI + 2 kênh DO + RS-232/485 Modbus ICP DAS SMS-534 CR

Tính năng

• Support Quad-band WCDMA 850/900/1900/2100 MHz.
• Support Quad-band GSM 850/900/1800/1900 MHz.
• Support SMS DBS software. (http://m2m.icpdas.com/SMS_DBS.html)
• Identify ASCII or Unicode SMS Automatically.
• Support max. 140 ASCII Characters.
• Support max. 70 Unicode Characters.
• Built-in ASCII Commands and SMS tunnel Communication Modes.
• Max. 10 Default Phone Numbers.
• Built-in Watch-dog Function.
• Support SMS setting and control.
• DI*6, DO*2, AI*1, RS232*1, RS485*1
• DO control by dual-tone multi-frequency.
• Digital input support NC(normal close)/NO(normal open)/Counter modes.
• Periodic SMS report.
• Voice Alarm and SMS triggered by DI trigger or exceed AI/Counter preset limits.
• Support simple command to send SMS via RS232.
• Support data log.
• Support DC +10 VDC ~ +30 VDC Power Input.
• Supports 3.7 V Li-ion Battery Backup.
• DIN Rail design.

Giới thiệu

The SMS-534 is an intelligent 3G SMS/Voice controller for industry applications with the simple commands and SMS tunnel function, and power can be input by the external power or Li-Battery. It supports UNICODE or 7 bit format for users to implement sending SMS messages with various languages. The SMS-534 also provides the sound alarm application with the pre-defined voice files. In addition, the DTMF function of the SMS-534 is for the applications with the keypad of phones to control the local I/O. And, With the SMS DBS software of ICP DAS, users can manage the SMS-534 in PC centrally.

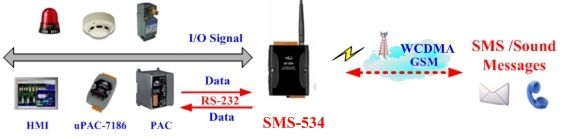

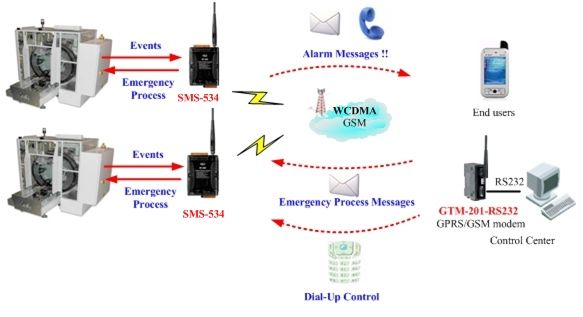

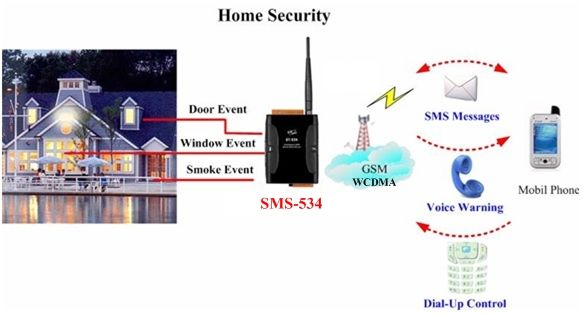

Ứng dụng

Download

Data Sheet

Documents

Thông tin mua hàng
