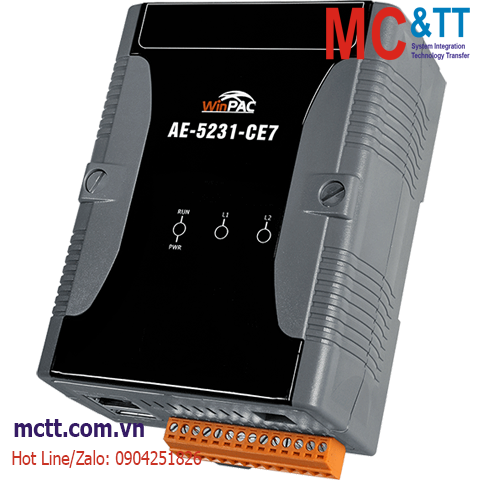

Bộ lập trình nhúng AVEVA Edge PAC 300 tag CPU Cortex-A8 + WinCE 7.0 ICP DAS AE-5231-CE7 CR
Features
• AVEVA Edge 300 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• Various Communication Interfaces
‣1 x 10/100/1000BASE-T Ethernet Port
‣4 x Serial Ports (RS-232/485)
‣1 x USB 2.0 (host)
Introduction
The AE-5231-CE7 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Remote I/O expansion is available to use Ethernet I/O modules and RS-232/485 I/O modules.
This WinPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Application
Specifications
| Software |
| OS |
Windows CE 7.0 |
| Protocol |
Support Web HMI function, PC running Internet Explorer can access to the WP-523A-CE7 via Intranet, Internet, or dial modem. |
| Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| Multilanguage Support |
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit |
| CPU |
Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
512 MB SDRAM |
| Storage |
4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory |
64 KB FRAM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA |
| Resolution |
640 x 480, 800 x 480, 800 x 600, 1024 x 768 |
| LED Indicators |
| Status |
1 x System/Power, 2 x User defined |
| I/O Expansion |
| I/O Type |
XV-board |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000Base-TX |
| Power |
| Input Range |
+12 ~ +48 VDC |
| Consumption |
4.8 W |
| Mechanical |
| Dimensions (mm) |
91 x 132 x 52 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| AE-5231-CE7 CR |
AVEVA Edge (300 tags) Based WinPAC (WinCE 7.0) (RoHS) |
