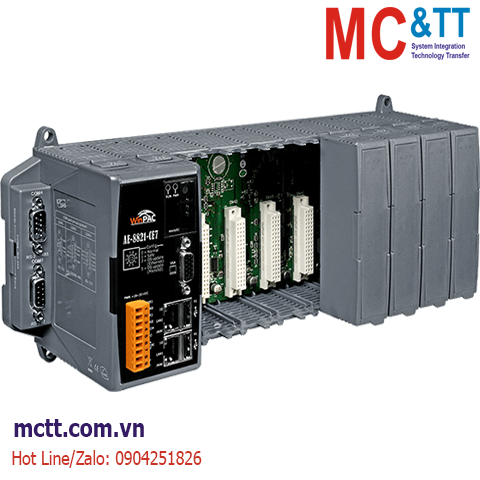

Bộ lập trình nhúng AVEVA Edge PAC 1500 tag CPU Cortex-A8 + WinCE 7.0 +8 slot module I/O ICP DAS AE-8821-CE7-1500 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

AVEVA Edge (1500 tags) ready, 8-slot WinPAC

THÔNG TIN SẢN PHẨM

Features

• AVEVA Edge 1500 tags runtime license ready
• Windows Embedded Compact 7 Operating System
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• 8 Slots for High Profile I/O Modules
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Port
‣ 4 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Redundant Power Input

Introduction

The AE-8821-CE7-1500 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 1 I/O slot is available to use ICP DAS I-8K and I-87K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.

This WinPAC also features with the powerful AVEVA Edge.
AVEVA Edge is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Application

Specifications

Software
OS	Windows CE 7.0
Service	FTP server, Web server (supports VB script, JAVA script), Embedded SQL serve
Framework Support	.Net Compact Framework 3.5
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chines
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number	Yes, for software Copy Protection
System Memory	512 MB DDR3
Storage	Flash: 256 MB; 4 GB miicroSD card (up to 32 GB)
Non-Volatile Memory	MRAM: 512 KB; EEPROM: 16 KB
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Resolution	800 × 480, 800 × 600, 1024 × 768

LED Indicators
Status	1x Power, 1 x System/Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	8

COM Ports
Ports	2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485

HMI
Rotary Switch	Yes (0 ~ 9)

Ethernet
Ports	2 x RJ-45, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

USB
Connector	2

Power
Input Range	+10 VDC ~ +30 VDC
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption	9.6 W (0.4 A @ 24 VDC)

Mechanical
Dimensions (mm)	95 x 132 x 111 (W x L x H)
Installation	DIN-Rail, wall mounting
Ingress Protection Rating	IP30 (Aluminum)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

AE-8821-CE7-1500 CR

AVEVA Edge (1500 tags) ready, 8-slot WinPAC (WinCE 7.0) (RoHS)
