Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Wi-Fi Modbus TCP cảnh báo MP3 6 kênh DI + 1 kênh Relay ICP DAS ALM-06-WF CR
Features
Introduction
The ALM-06-WF module features Wi-Fi connection complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the module make an easy way to incorporate wireless connectivity into monitoring and control systems. It also supports Modbus TCP protocol and the network encryption configuration, which makes perfect integration to monitoring in SCADA software and HMI.

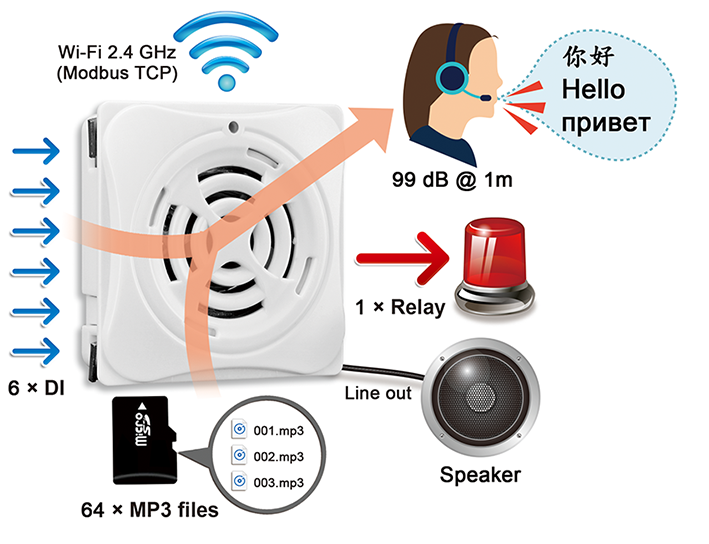

ALM-06-WF includes 6 channels Isolated DI, with 8 kinds of alarm modes, 1 channel Relay output & 1 Audio Line out.
MP3 audio format (44.1kHz/128kbit/s is preferred), all files & config are stored in Micro SD (T-Flash).
Specifications
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x System status 1 x Connective status/Locator |
| Wi-Fi | |
|---|---|
| Standards | IEEE 802.11 b/g/n |
| Mode | Access Point (AP) & Station (STA) |
| Encryption | WEP, WPA/WPA2-PSK |
| Data Rate | 2.4 GHz |
| Digital Input/Counter | |
|---|---|
| Channels | 6 |
| Type | Dry Contact |
| Dry Contact, ON Voltage Level | Close to GND |
| Dry Contact, OFF Voltage Level | Open |
| Isolation | 3750 VDC |
| Relay Output | |
|---|---|
| Channels | 1 |
| Type | Form A |
| Contact Rating | DC 50 V/100 mA |
| Audio | |
|---|---|
| Sampling Frequency | Rate: 24/44.1 (prefer) / 48 KHz |
| Line out Impedance | 1 KΩ |
| Audio Output | 3 W (Max.) |
| Audio Startup Time | < 150 ms |
| Bit Rate | 32 64 96 128 (prefer) 160 192 kbit/s |
| Audio File Format | MPEG1-Audio Layer Ⅲ (MP3) |
| Number of File | 64 (Max.) |
| Volume Control | Digital Volume Control |
| Sound Pressure Level | 99 dB @ 1 KHz/1 meter |
| Storage | |
|---|---|
| File Transfer | PC Utility through Wi-Fi |
| File System | Fat16/32 |
| Type | Micro SD (T-Flash) up to 32GB, bundle 4GB |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +9 VDC ~ +28 VDC |
| Consumption | 0.7 W Standby |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 72 x 22 (W x L x H) |
| Installation | Panel Mount Wall Mount DIN-Rail |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering infromation
| ALM-06-WF CR | MP3 Alert module with Wi-Fi connection, 6-ch DI and 1-ch Relay Output. (RoHS) (Asia Only) |
