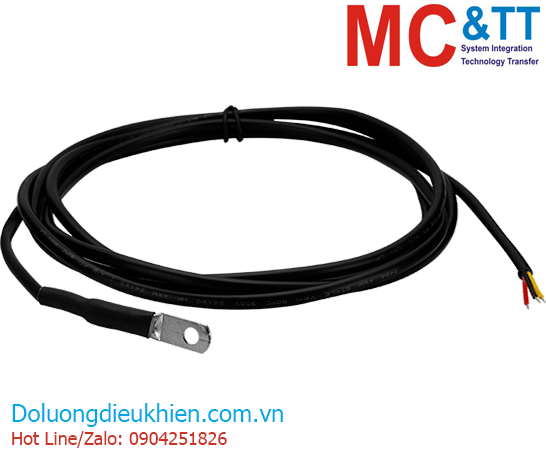

3-wire DS18B20, copper nickel plated (-30℃~125℃) ICP DAS CA-TP1-M200-L020
Features
- Material of Coating : copper nickel plated 8*40
- IC : DS18B20
- Wire : 3-pin Cable, 2M
- B Constant : B25/50≤±1%
- Dissipation Factor : ≧2(mW/°C)
- Thermal Time Constant : ≦ 16 (sec)
- Measuring Temperature Range : -30℃~125℃
