Miễn phí vận chuyển với đơn hàng từ 10.000.000đPhần mềm kiểm tra kết nối CAN BUS và Driver ICP DAS CAN Test Tool

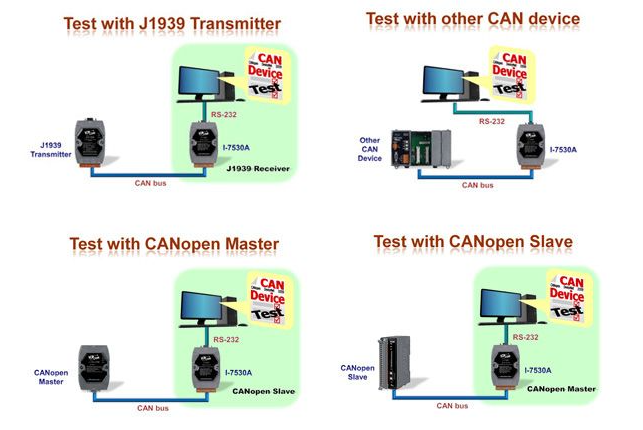

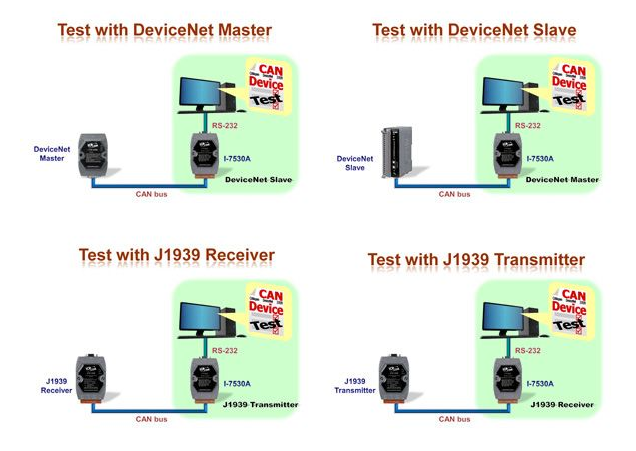

The CAN test tool can help users to test the CAN communication of CAN series of ICP DAS by the simple steps. This tool is based on VxCAN driver and supports most of all CAN products of ICP DAS. You can use these devices to be an simple CANopen master, CANopen slave, DeviceNet master, DeviceNet slave, J1939 transmitter or J1939 receiver to test the DUT (device under test). It can easily and quickly test if the DUT works well or not. Only three simple steps, you can finish the test of these devices.
Features

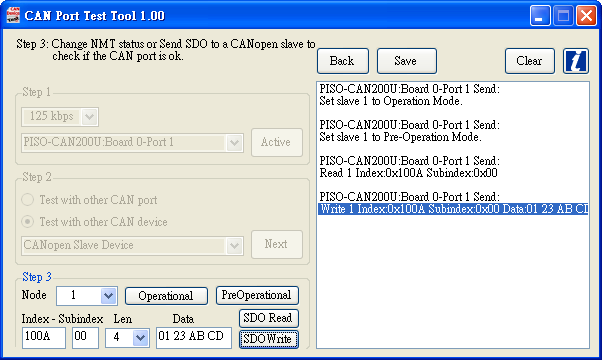

Three steps, easy to test
Support 8 Test Functions
VxCAN” driver is the developed by the ICP DAS. By using the “VxCAN” driver, the users can easily integrate different interfaces of CAN devices like RS-232/CAN converter、Ethernet/CAN、USB/CAN converter, and PCI series CAN board. The “VxCAN” driver will receive the CAN message and send the CAN message on your demand. The users need not develop the socket or serial COM functions before using Ethernet/CAN or RS-232/CAN converters. The “VxCAN” driver has already done. The “VxCAN” driver can reduce the complexity of the application code. For example, if the users have no idea to develop the socket program, they still can use the Ethernet/CAN converter to complete a stable control system by using the “VxCAN” driver. The users can spend most of the time on their application but not on the CAN converter.
When “VxCAN” starting, it will detect all CAN devices in the users’ PC and assign a “VxCAN port” number. The users can image the “VxCAN port” as the COM port. The only difference is that the “VxCAN port” is a CAN port mapped to the CAN devices. If the users do not change the CAN devices in their PC, the “VxCAN port” number would not change. There is an example below.
