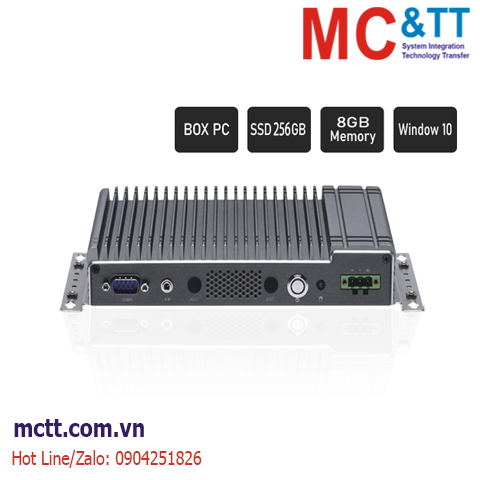

Máy tính công nghiệp không quạt Cimon CM-NB7011-D với Intel Core™ i7-1185G7E, 2xLAN, 1xCOM, 4xUSB

Thương hiệu: CIMON | Tình trạng: Còn hàng
Liên hệ

Intel Core i7-1185G7E CPU, 250GB, 8GB, DC24V, Win 10 loT included

Gọi +84 904251826 để được trợ giúp

Máy tính công nghiệp không quạt Cimon CM-NB7011-D với Intel Core™ i7-1185G7E, 2xLAN, 1xCOM, 4xUSB

Thông số kỹ thuật

  CM-NB3011-D CM-NB5011-D CM-NB7011-D
CPU 11th Intel® Core™ i3-1115G4E Dual Core, 2.2 GHz, 6M Cache (15W) 11th Intel® Core ™ i5-1145G7E Quad Core, 1.5 GHz, 8M Cache (15W) 11th Intel® Core ™ i7-1185G7E Quad Core, 4.4 GHz, 12M Cache (15W)
MEMORY 1 x 260-pin DDR4 SO-DIMM up to 32G (Default 8GB)
GRAPHIC Intel® UHD graphics

Intel® Iris® Xe graphics

Intel® Iris® Xe graphics
STORAGE 1 X M.2 2280 Key M 250 GB (PCIe x4 only)
Display Ports 1 x DP++, 4096 × 2304 @ 60Hz
1 × HDMI 2.0, 4096 x 2160 @ 60Hz
SERIAL 1 x RS232/RS422/RS485 (COM1)
ETHERNET 2 × Gigabit Ethernet
USB 4 x USB 3.0
AUDIO 1 × Line-in
OS Windows 10 IoT Enterprise
UTILITY PROGRAM UWF / Winclon (Recovery System)
INPUT VOLTAGE 24VDC
Power Consumption 20 W (Max. 50 W)
Dimension (W X D X H) 227.6 x 132.6 x 42.0 mm (9.0 x 5.2 x 1.7 in)
Weight 1.27 kg (2.80 lb)



Item Specifcation Standards
Operating
Temperature
-20 – + 60°C (-4 – +140°F) -
Storage
Temperature
-20 – + 80°C (-4 – +176°F) -
Operating/
Storage Relative
Humidity
10 – 90% Non-condensing -
Shock
Resistance
147 m/s2 (15 G), X,Y,Z directions for ±3 times (Total 18 times) IEC/EN 61131-2
Vibration
Resistance
5–9 Hz Single amplitude: 3.5 mm
9–150 Hz Fixed acceleration: 9.8 m/s2
X,Y,Z directions for 10 cycles (approx. 100 min)
IEC/EN 61131-2
Noise
Resistance
Impulse, EFT/Burst, Surge, ±2 kV, 1 μ CIMON Standard
Static Discharge
Resistance
4 kV - Contact Discharges
8 kV - Air Discharges
IEC 61000-4-2
IEC 61000-4-2

Thông tin đặt hàng

  • CM-NB7011-D

Intel Core i7-1185G7E CPU, 250GB, 8GB, DC24V, Win 10 loT included

OPTIONS FOR CM-NB3000/5000/7000 SERIES

Model number format for upgrades: (OS)-(Language)-(RAM)-(SSD).
Example: Win10Pro (English), 16GB RAM, 500GB SSD: W10P-E-8-S5
*Default model doesn’t require this format.
**Model number for default OS is W10I.
***For OS options in languages other than English (E) and Korean (K), contact our sales team.
****Note: 64GB RAM is available - please contact CIMON for a quote.

MODEL DESCRIPTION
16GB RAM(16) 16GB RAM
32GB RAM(32) 32GB RAM
500GB SSD(S5) 500GB M.2 NVMe SSD
1TB SSD(S1T) 1TB M.2 NVMe SSD
Windows 10 Pro(W10P) Windows 10 Pro instead of Windows 10 IoT Enterprise
Windows 11 Pro(W11P) Windows 11 Pro instead of Windows 10 IoT Enterprise
Linux Ubuntu(LU) Linux Ubuntu instead of Windows 10 IoT Enterprise
CM0-DR DIN Rail Bracket
CM0-WBCM(WB) WiFi+BT Combo Module

Tài liệu

Datasheet
