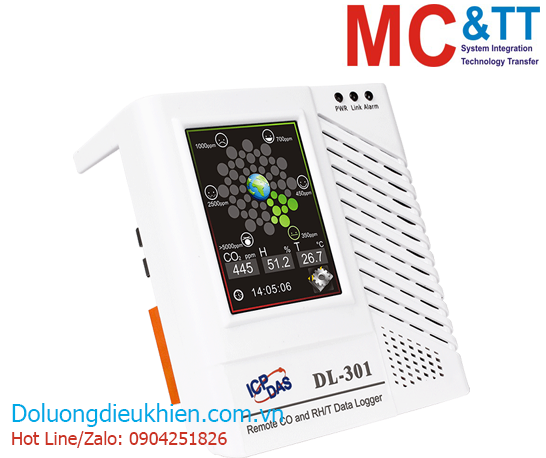

Module Data Logger đo CO + nhiệt độ + độ ẩm RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-301 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Remote CO/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE)

THÔNG TIN SẢN PHẨM

Features

Simultaneous Display for CO, Temperature, Humidity and Dew Point
Measurement Range
- CO: 0 ~ 1000 ppm
2.8" LCD Touch Screen
Able to store up to 450,000 records with date and time stamps
Touch-screen and Web-based Configuration Interfaces
Free Software Utility, iOS App and Android App Included
Able to Display Multilingual Messages
Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
Includes RS-485/Ethernet/PoE Communication Interfaces
Relay Output for Alarm Device or IAQ Device Control
Desktop, DIN-Rail or Wall Mounting

Introduction

The DL-300 series of Data Logger devices can be used to record CO, CO2, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300 Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The DL-300 Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level

Supports the MQTT Protocol for IoT Applications

Powerful, Free DL300 Utility Software
The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Specifications

CPU Module
Real Time Clock	Yes

Display
Backlight Life	20,000 hours
Brightness	160 cd/m2
Touch Panel	Yes
LCD Information Displayed	2.8 TFT (Resolution 240 x 320 x 16), Defective Pixels <= 3

Temperature Measurement
Range	-10 ~ +50°C
Resolution	0.1°C
Accuracy	±0.6°C

Humidity Measurement
Accuracy	±5% RH
Range	0 ~ 100% RH
Resolution	0.1% RH

Dew Point
Range	Calculated using temperature and relative humidity
Resolution	0.1°C

CO Measurement
Range	0 ~ 1000 ppm (Electrochemical)
Resolution	1 ppm
Accuracy	±5% of measured value
Response Time	30 seconds
Warm-up Time	300 seconds

System
Real Time Clock	Yes
Data Logger	Yes, up to 450,000 records

Relay Output
Type	Form A × 1, SPST
Contact Rating	30 VDC @ 16 A or 250 VAC @ 16 A

COM Ports
Ports	1 x RS-485 1 xEthernet/PoE

Power
Consumption	PoE: 1.84 W (Max.) Non-PoE: 1.74 W (Max.)
Powered from PoE	IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block	+12 ~+48 VDC

Mechanical
Dimensions (mm)	106 x 114 x 56 (W x L x H)
Installation	Desktop, DIN-Rail or Wall Mounting

Environmental
Operating Temperature	0 ~ +50°C
Storage Temperature	-30 ~ +75°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

DL-301 CR

Remote CO/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE) (RoHS)
