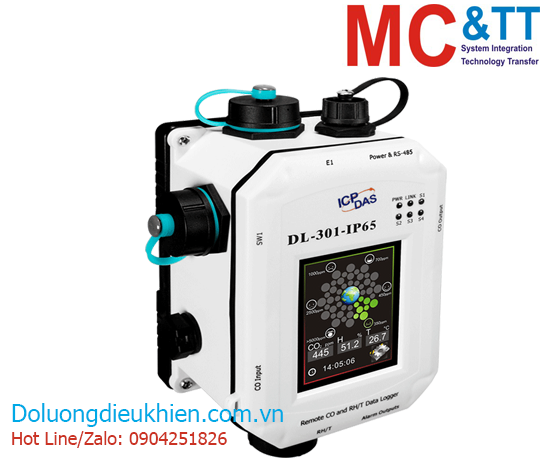

Module Data Logger đo CO+ nhiệt độ + độ ẩm RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-301-IP65 CR

Module Data Logger đo CO+ nhiệt độ + độ ẩm RS-485/Ethernet Modbus RTU/TCP & MQTT ICP DAS DL-301-IP65 CR

Features

• Able to record CO, Temperature, Humidity, and Dew Point Measurements
• Electrochemical Sensor
• 2.8" LCD Touch Screen
• Up to 450,000 records with date and time stamps
• Touch-screen and Web-based Configuration Interface
• Simple and Powerful Software Utility, iOS APP and Android App Included
• Able to Display Multilingual Messages on the Screen
• Supports the DCON, Modbus RTU/TCP, and MQTT Protocols
• Includes RS-485/Ethernet/PoE Communication Interfaces
• Relay Output for Audible/Visual Alarm or IAQ Device Control
• Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
• IP 65 Protection Approval

Introduction

The DL-300-IP65 series of Data Logger devices can be used to record CO, CO2, HCHO, TVOC, NH3, H2S, Temperature, Humidity and Dew Point information, including date and time stamps, and are able to store up to 450,000 downloadable records. Real-time data can be accessed from the DL-300-IP65 series Data Logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the Data Logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/IoT (Internet of Things) connectivity protocol-MQTT. The DL-300-IP65 series Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system. The IP65 version of DL-300-IP65 series is designed for industrial applications in harsh environments that provides IP65 grade protection approval. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock.

Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level

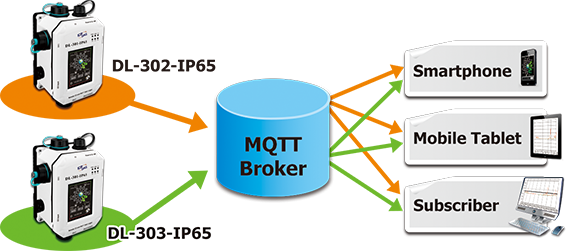

Supports the MQTT Protocol for IoT Applications




Simple and powerful utility
The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industrystandard software or spread sheet for analysis.

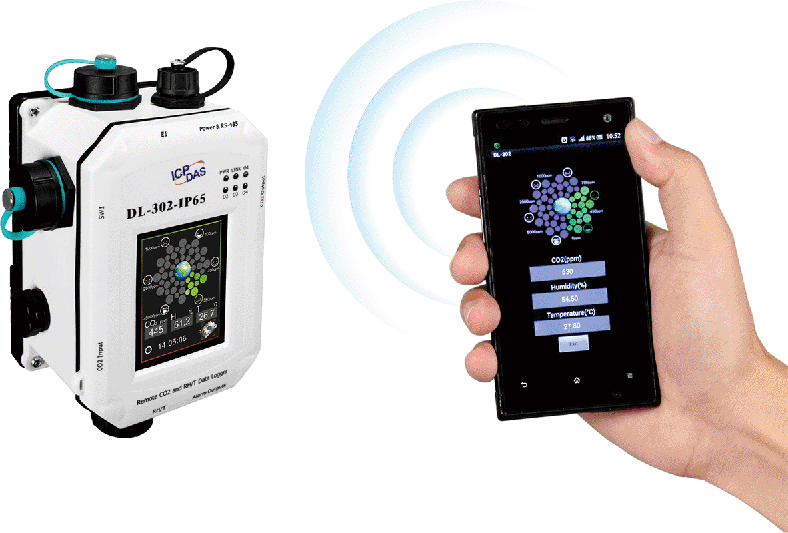

Multi-platform Remote Access Software
Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.


Specifications

Download

Data sheet

Documents

Ordering infromation
