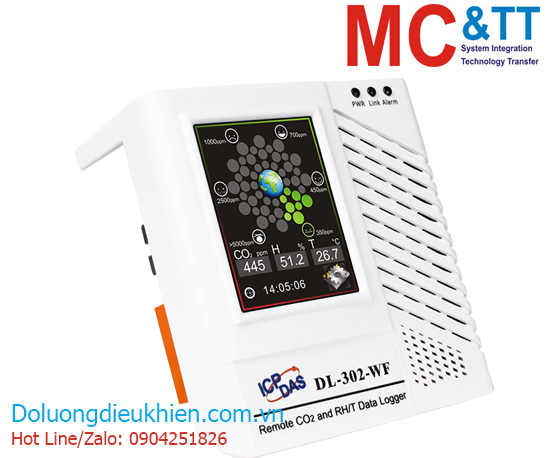

Module Data Logger đo CO2+ nhiệt độ + độ ẩm RS-485/Ethernet/Wi-Fi Modbus RTU/TCP & MQTT ICP DAS DL-302-WF CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE, Wi-Fi) (Asia Only)

Gọi +84 904251826 để được trợ giúp

Module Data Logger đo CO2+ nhiệt độ + độ ẩm RS-485/Ethernet/Wi-Fi Modbus RTU/TCP & MQTT ICP DAS DL-302-WF CR

Features

  • Simultaneous Display for CO2, Temperature, Humidity and Dew Point
  • Non-dispersive Infrared (NDIR) CO2 Sensor
  • 2.8" LCD Touch Screen
  • Able to store up to 450,000 records with date and time stamps
  • Touch-screen and Web-based Configuration Interface
  • Simple and Powerful Software Utility, iOS APP and Android App Included
  • Able to Display Multilingual Messages on the Screen
  • Supports the DCON, Modbus RTU, Modbus TCP and MQTT Protocols
  • Includes RS-485/Ethernet/Wi-Fi Communication Interfaces
  • Compatible with IEEE802.11b/g/n standards
  • Support infrastructure and limit-AP modes for wireless networks
  • Relay Output for Audible/Visual Alarm or IAQ Device Control
  • Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC input
  • Desktop, DIN-Rail or Wall Mounting

Introduction

The DL-300-WF series is an IAQ(Indoor Air Quality) monitoring module with Wi-Fi, Ethernet and RS-485 interfaces. It provides a WLAN connection which complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the modules make an easy way to incorporate wireless connectivity into monitoring and control systems. The DL-300-WF series of data logger devices can be used to record CO, CO2, temperature, humidity and dew point information, including date and time stamps, and are able to store up to 450,000 downloadable reords. Real-time data can be accessed from the DL-300-WF data logger from anywhere and at any time using the free Windows software, the iOS App or the Android App, as long as they are connected to the same local network as the data logger. Support is provided for popular industrial protocols such as DCON, Modbus RTU, and Modbus TCP, as well as the emerging machine-to-machine (M2M)/)IoT (Internet of Things) connectivity protocol – MQTT. The DL-300-WF Data Logger can be connected via widely used communication interfaces including RS-485, Ethernet and PoE, meaning that the device can be easily integrated into existing HMI or SCADA systems, and is easy to be maintained in a distributed control system.

Large 2.8" LCD Touch Screen, with clear Color Chart to indicate the CO/CO2 Level



Multi-platform Remote Access Software

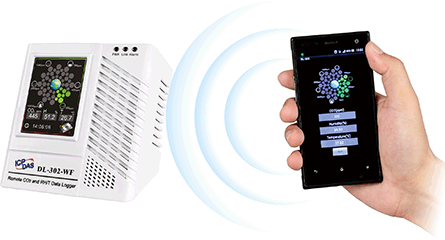

Real-time data from the DL-300 Data Logger can be accessed from anywhere and at any time using the DL300 Utility, the iOS or Android App, or via a regular web browser, as long as they are connected to the same local network as the Data Logger.




Supports the MQTT Protocol for IoT Applications



Powerful, Free DL300 Utility Software
The DL300 Utility can be used to configure the modules, monitor real-time data, group DL-300 modules so that the status of distribution groups can be viewed and managed. The utility also allows the log data to be downloaded and exported to a .CSV file that can then be imported into any industry-standard software or spread sheet for analysis.

Specifications

CPU Module
Real Time Clock Yes



Software
Built-in Web Server Yes



Temperature Measurement
Range -10 ~ +50°C
Resolution 0.1°C
Accuracy ±0.6°C



Humidity Measurement
Accuracy ±5% RH, Non-condensing
Range 0 ~ 100% RH, Non-condensing
Resolution 0.1% RH, Non-condensing



Dew Point
Range Calculated using temperature and relative humidity
Resolution 0.1°C



CO2 Measurement
Range 0 ~ 9999 ppm (NDIR)
Resolution 1 ppm
Accuracy ±40 ppm ±3% of measured value
Response Time 120 seconds
Warm-up Time 300 seconds



System
Real Time Clock Yes
Data Logger Yes, 450,000 Records



Wi-Fi
Transmission Range 50 meters (LOS)
Standard Supported IEEE 802.11 b/g/n
Receive Sensitivity -95.7 dBm @ 1 DSSS, -74.0 dBm @ 54 OFDM
Output Power 18 dBm @ 1 DSSS, 14.5 dBm @ 54 OFDM
Mode Infrastructure & Limited AP
Encryption WEP, WPA and WPA2
Antenna 1 dBi (PCB Antenna)



Relay Output
Type Form A×1, SPST. 30 VDC @ 16 A or 250 VAC @ 16 A



Power
Consumption PoE: 1.8 W (Max.)
Non-PoE: 1.7 W (Max.)
Powered from PoE IEEE 802.3af, Class 1 (48 V)
Powered from Terminal Block +12 ~+48 VDC



Mechanical
Dimensions (mm) 106 x 114 x 56 (W x L x H)
Installation Desktop, DIN-Rail or Wall Mounting



Environmental
Operating Temperature 0 ~ +50°C
Storage Temperature -30 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

DL-302-WF CR  Remote CO2/Temperature/Humidity/Dew Point Data Logger with Safety Alarm (RS-485, Ethernet, PoE, Wi-Fi) (RoHS) (Asia Only)
