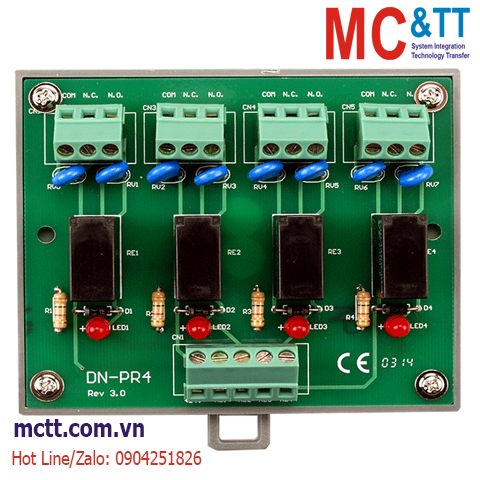

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 4 kênh đầu ra relay ICP DAS DN-PR4/N CR
Feature
Introduction
The DN-PR4 Features a DIN-rail mount and four form C electromechanical power relays for efficient switching of load by programmed control. The contact of each relay can control a 5 A load at 250VAC/30VDC. The relay is energized by applying a +24V voltage signal to the appropriate relay channel. Each output is equipped with a LED to display their status. Each output is equipped with a varistor that shunts the surge voltage of the inductive load or electromagnetic brake to protect the relay contact point. All relay control and relay outputs are accessible through the wiring terminals.
Application
Specifications
| Relay Output | |
|---|---|
| Channels | 4 X FORM C |
| Type | 24 V Power Relay |
| Contact Rating | 5 A @ 250VAC / 30 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Electrical Endurance | 1 x 10^5 |
| Mechanical Endurance | 1 x 10^7 |
| Power | |
|---|---|
| Consumption | 2.2W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 103 mm x 86 mm x 30 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% to 90 % noncondensing |
Download
Datasheet
Documents
Ordering Information
| DN-PR4/N CR | 4-ch Power Relay Board (Pitch= 5.08 mm) (RoHS) |
