Cảm biến đo Momen xoắn trục quay không tiếp xúc 0.1 - 20 Nm Lorenz DR-2153

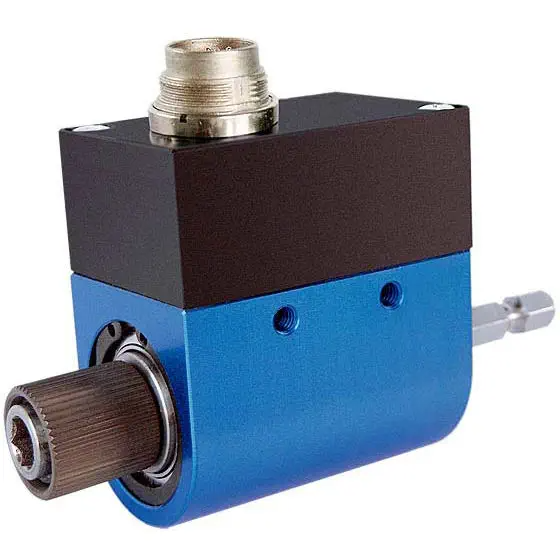

DR-2153, Analog Output Rotary Torque Sensor
The DR-2153 miniature torque sensor has a contactless and digital signal transmission from rotor to stator, which means no signal falsification and maintenance-free.
Features:
DR-2153 - Specifications
Type | Rotary |
Full Scale | 0.1 Nm |
0.2 Nm | |
0.5 Nm | |
1 Nm | |
2 Nm | |
5 Nm | |
10 Nm | |
15 Nm | |
20 Nm | |
Max Speed | 3000 RPM |
4000 RPM | |
Output | ±5 V DC |
±10 V DC | |
Speed/Angle (TTL) | |
Precision | ±0.10 % FS |
Excitation | 12 V - 28 V DC |
Drive Side | 1/4in Hexagon Socket |
Test Side | 1/4in Hexagon Shaft |
IP Rating | IP50 |
Min Temperature | 0 °C |
Max Temperature | 60 °C |
Download
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
---|---|
PDF Datasheet: | DR-2153: 080959_DR-2153_en.pdf DR-2453: 080961a_DR-2453_en.pdf |
