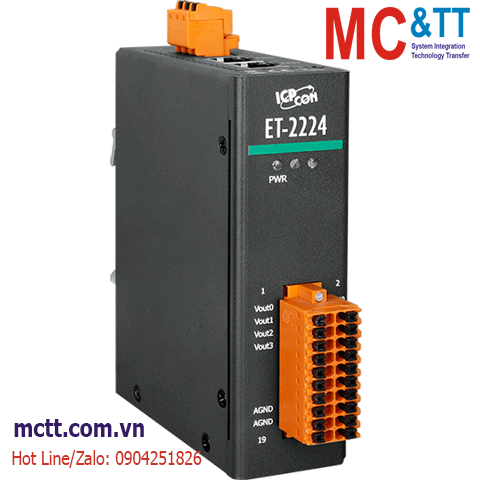

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 2 cổng Ethernet Modbus TCP & MQTT 4 kênh AO ICP DAS ET-2224 CR
Features
Introduction
The ET-2224 provides 4 channels analog output. It provides a variety of programmable analog output options (0 to 5 V, +/-5 V, 0 to 10 V, +/-10 V, 4 to 20 mA, or 0 to 20 mA). With 2 Ethernet ports, the ET-2224 allows daisy chain connection which permits flexibility in locating devices, eases installation, and lowers infrastructure costs. It features 4 kV ESD protection, 4 kV EFT protection, 2 kV surge, and 3000 VDC I/O isolation are also provided to enhance noise protection capabilities in industrial environments. The power-on value and safe value of AO are configurable.
ET-2224 module supports MQTT protocol and can act as a message publisher and subscriber. After connecting to the server MQTT Broker, the I/O status of the module can be published in the form of a topic, and can also receive messages from the same subscription topics. In communication, when the ET-2224 module is disconnected from the broker, the module has a reconnection mechanism that can automatically reconnect with the broker. In addition, there is a Keep-Alive Interval mechanism to ensure that the connection with the Broker is always maintained.
The ET-2224 supports the standard SNMP V2c specification. Through this specification, ET-2200 can transmit module information and I/O information to SNMP network management equipment or software (SNMP Network Management Software) to help administrators monitor the status of ET-2200 in real time. If the Trap function is enabled, when the module I/O status changes or reboots, it can send a message to the manager to keep track of the channel status at any time.
Applications
Factory, Building and Home Automation Remote Maintenance.
Specifications
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| CPU | 32-bit ARM |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Analog Output | |
|---|---|
| Channels | 4 |
| Type | Voltage: 0 to +5 VDC, ±5 VDC, 0 to +10 VDC, ±10 VDC Current: 0 to 20 mA, 4 to 20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Short Circuit Protection | Yes |
| DA Output Response Time | 1 ms per channel |
| Programmable Output Slope | Voltage: 0.0625 to 512 V/Second Current: 0.125 to 1024 mA/Second |
| Open Wire Detection | For 4 to 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100 Base-Tx, Switch Ports |
| LAN bypass | Yes |
| Security | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 5.0 W (max.) |
| Powered from Terminal Block | +10 to +48 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 33 x 126 x 117 (W x L x H) |
| Installation | DIN-Rail mounting / Wall mounting (Optional ASO-0015) |
| Environment | |
|---|---|
| Operating Temperature | -25 to +75 °C |
| Storage Temperature | -40 to +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
Download
Ordering Information
| ET-2217 CR | Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input (RoHS) |
