Module 2 cổng Ethernet Modbus TCP 12 kênh DI + 6 kênh DO ICP DAS ET-7250A CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

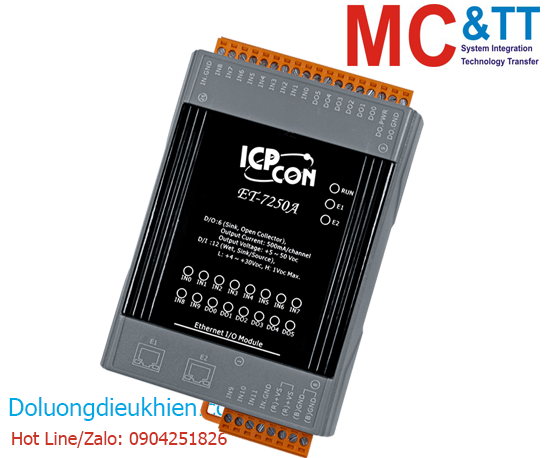

Ethernet I/O Module with 2-port Ethernet Switch, 12-ch DI and 6-ch DO

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server
Web HMI
Support for both Modbus TCP and Modbus UDP Protocols
Communication Security
2-port Ethernet Switch for Daisy-Chain Topology
Dual Watchdog
Wide Operating Temperature Range: -25 ~ +75°C
I/O Pair Connection
Built-in I/O
- DI/Counter: 12 Channels
- DO: 6 Channels

Introduction

The ET-7000/ET-7200 series provides full networking capabilities, and a variety of I/O functions, together with web based Ethernet I/O monitoring and control modules, meaning that the modules can be remotely controlled using the Modbus TCP/UDP protocol via an Ethernet network. This ensures that the ET-7000/ET-7200 series provides integration with HMI, SCADA, PLC and other industrial control software systems. The ET-7250A includes two built-in Ethernet switch ports, which help to reduce implementation costs as there is no need to install an additional switch in order to daisy chain the ports or to extend the network via the Ethernet line. ET-7250A provides 6 sink-type digital output channels and 12 wet contact digital input channels, each of which is able to be used as a 32-bit counter. In addition, each digital input of ET-7250A accepts either dry contact or wet contact.

Specification

CPU Module
Watchdog Timer	Yes, Module (0.8 second), Communication (Programmable)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power, 2 x Ethernet, 16 x I/O

Software
Built-in Web Server	Yes

Digital Input/Counter
Channels	12
Sink/Source (NPN/PNP)	Dry: Source Wet: Sink
Wet Contact, ON Voltage Level	1 VDC Max.
Wet Contact, OFF Voltage Level	+3.5 VDC ~ +50 VDC Max.
Contact	Wet Contact
Dry Contact, ON Voltage Level	Close to GND
Dry Contact, OFF Voltage Level	Open
Max. Counts	4,294,967,285 (32 bits)
Frequency	100 Hz
Min. Pulse Width	5 ms
Input Impedance	10 KΩ
Overvoltage Protection	+60 VDC

Digital Output
Channels	6
Type	Isolated Open Collector
Sink/Source (NPN/PNP)	Sink
Load Voltage	+5 VDC ~ +50 VDC
Max. Load Current	500 mA/channel
Overvoltage Protection	60 VDC
Overload Protection	1.3 A
Short-Circuit Protection	Yes
Power on Value	Yes, Programmable
Safe Value	Yes, Programmable

Ethernet
Ports	2 x RJ-45, 10/100 Base-TX, Swtich Ports
Security	ID, Password and IP Filter
Protocol	Modbus/TCP, Modbus/UDP

Power
Reverse Polarity Protection	Yes
Consumption	2.7 W
Powered from Terminal Block	12 ~ 48 VDC

Mechanical
Dimensions (mm)	76 mm x 120 mm x 38 mm (W x L x H)
Installation	DIN-Rail or Wall mounting

Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing
