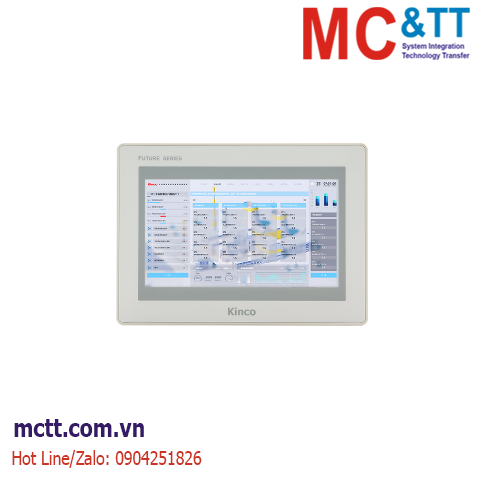

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng HMI 7 inch Kinco F2070E2 (3 COM, 1 USB Host, 2 Ethernet)
Tính năng
Thông số kỹ thuật
|
Performance specification |
|
|
Display size |
7" TFT |
| Display area | 154.08(H)×85.92(V) |
|
Resolution |
800*480px |
|
Display color |
16.77M color |
| Visual angle | 80/80/80/60 (L/R/U/D) |
| Contrast ratio | 800:1 |
|
Backlight |
LED |
|
Brightness |
400cd/m2 |
|
Backlight life |
20000 hours |
|
Touch Panel |
4 line precision resistance network（surface hardness 4H) |
|
CPU |
Quad-core ARM 1.8GHz |
|
Storage |
8GB eMMC + 1GB RAM |
|
RTC |
Built-in |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/ Serial port |
|
Ethernet |
LAN0:10/100/1000 Mbps; LAN1:10/100 Mbps |
|
Program download |
Ethernet port/USB Slave/Serial port |
|
COM port |
COM0:RS232/RS485/RS422; COM1:RS485/RS422; COM2:RS232 |
|
Electrical specification |
|
|
Input power supply |
DC18V~DC28V, Built-in isolation power supply |
|
Rated power |
7W @24V DC |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
| PCB | Yes |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
204*150*37mm |
|
Cutout size(mm) |
192*138mm |
|
Weight |
0.6 Kg |
|
Environment specification |
|
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10~500Hz, 30m/s², X,Y,Z direction/hour |
|
Cooling method |
Natural air cooling |
|
Certification |
|
|
Degree of protection |
Conforming to IP65 certification (4208-93) |
|
CE certification |
EN61000-6-4:2007+A1:2011，EN61000-6-2:2005 |
|
Software |
|
|
Configuration software |
Kinco DToolsPro |
Thông tin đặt hàng
7 "16.77 million true colors, 800 * 480 resolution, quad core CPU, 8GB flash memory, 1GB memory, 3 COM ports, standard with 1 USB HOST, 1 USB SLAVE, and 2 network ports
