F8225: Router công nghiệp CDMA+ ZigBee + 1 LAN + RS-232 APN/VPN
Features
● Support hardware and software WDT
● Support ZigBee function
● Support standard RS232(or RS485/RS422) and Ethernet port that can connect to serial and Ethernet devices directly
● Support APN/VPDN
● Support NTP, RTC embedded
● Provide management software for remote management
 |

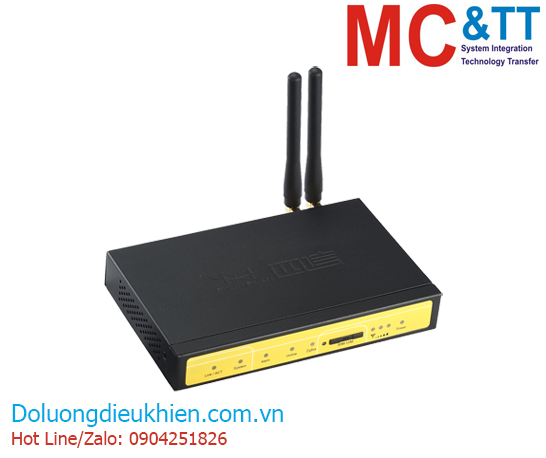

| F8225 ZigBee+CDMA ROUTER |
|
F8225 ZigBee+CDMA ROUTER is a kind of cellular terminal device that provides data transfer function by public GPRS network and ZigBee function.It supports RS232 (or RS485/RS422) and Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and Ethernet devices with only basic configuration. Also, it supports ZigBee function. |
|
 |
| |
| Environmental Adaptability |
| Designed for harsh and unattended environment |
|
 |
| |
 |
|
Powerful network conversion capability |
|
ZigBee to TCP/IP protocol (4G/3G/2.5G network) implement two kinds of network communication agreement |
|
| |
|
Reliable networking and communications |
|
Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication |
|
 |
| |
 |
|
Provide more security deployment scenarios |
|
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible |
|
| |
|
Supporting device management platform |
|
Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects. |
|
 |
Specification
Cellular Specification
| Cellular Module |
Industrial cellular module |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
CDMA2000 1xRTT 800MHz,
800/1900MHz(optional),450MHz(optional) |
| Bandwidth |
153.6Kbps |
| TX power |
<30dBm |
| RX sensitivity |
<-104dBm |
ZigBee Specification
| Item |
Content |
| ZigBee Module |
Industrial ZigBee Platform |
| Standard and Band |
IEEE 802.15.4
ISM 2.4 ~2.5GHz |
| Indoor/Urban Range |
30m
90m(With PA) |
| Outdoor/RF Line-of-Sight Range |
500m
2000m(With PA) |
| Transmit Power |
2.82 mw (+4.5dBm)
100 mw (+20dBm) (With PA) |
| Bandwidth |
250Kbps |
| Receiver Sensitivity |
-97dBm
-103dBm(With PA) |
| Network Topologies |
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
| Number of channels |
16 Direct Sequence Channels |
| Channel |
11 to 26 |
| Max packge size |
300Bytes |
Hardware System
| Item |
Content |
| CPU |
Industrial 32bits CPU |
| FLASH |
8MB(Extendable to 64MB) |
| SDRAM |
64MB |
Interface Type
| Item |
Content |
| Ethernet |
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200bits/s |
| Indicator |
"Power", "System", "Online", "Link/ACT", "Alarm", "ZigBee" ,“Signal Strength”. |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset |
Restore the router to its original factory default settings |
  |
Power supply
| Item |
Content |
| Standard Power |
DC 12V/1.5A |
| Power range |
DC 5~35V |
| Consumption |
<450mA (12V) |
Physical Characteristics
| Item |
Content |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
157x97x25 mm |
| Weight |
440g |
Environmental Limits
| Item |
Content |
| Operating Temperature |
-35~+75ºC（-31~+167℉） |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
