F8314: Modem công nghiệp EDGE + ZigBee +RS-232/485 APN/VPDN
Features
● Support data transfer by cellular and ZigBee network
● Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function
● TTL logic level RS232 interface can be customized
● Support APN/VPDN
● Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters
● Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
● Support hardware and software WDT
● Provide management software for remote management
● Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest
 |

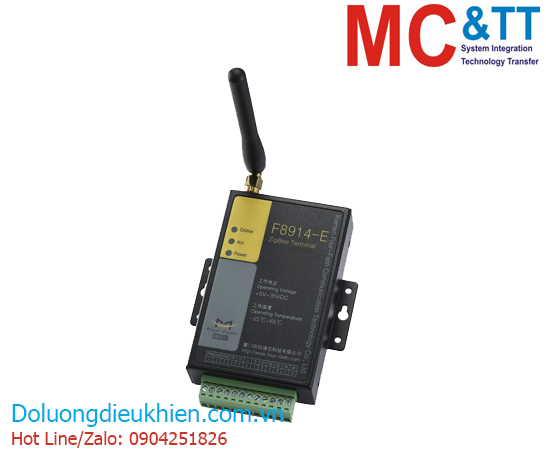

| F8314 ZigBee+EDGE IP MODEM |
|
F8314 ZigBee+EDGE IP MODEM is a kind of data terminal device that provides data transfer function by public EDGE and ZigBee network.It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on |
|
 |
| |
| Environmental Adaptability |
| Designed for harsh and unattended environment |
|
 |
| |
 |
|
Powerful network conversion capability |
|
ZigBee to TCP/IP protocol (4G/3G/2.5G network) implement two kinds of network communication agreement |
|
| |
|
ModbusIntegrated Modbus standard protocol |
|
Remote PC can collect and transfer the data by 4G/3G/2.5G and ZigBee network. |
|
 |
| |
 |
|
Simultaneous transmission of multiple data centers |
|
Support multiple data transmission and multi-data center backup center synchronous transmission (five data centers), applicable to rapid or large transmission of information |
|
| |
|
Reliable networking and transparent data communication |
|
Using high-performance industrial grade wireless modulehigh stability and high precision industrial grade components, a very wide temperature design, easy to adapt to cold temperature working environment that supports transparent data transmission, can adapt to any standard or non-standard user protocol.。 |
|
 |
| |
 |
| WDT watchdog |
|
Running protection system management and effective monitoring to ensure system stability. |
|
| |
|
|
Rich interfaces, convenient for customers to use |
|
Provide 5 x I/O, can achieve 5 digital input and output; Compatible with 3 pulse outputs, 3 analog inputs, 2 pulse counting function. Provide a standard RS232, RS485 interface for direct connection of serial devices. |
。 |
 |
Specification
Cellular Specification
| Item |
Content |
| Cellular Module |
Industrial cellular module |
| Standard and Band |
GSM850/900/1800/1900MHz
GPRS/EDGE Class 12 |
| Bandwidth |
236.8Kbps |
| TX power |
GSM850/900: <33dBm
GSM1800/1900: <30dBm |
| RX sensitivity |
<-106dBm |
ZigBee Specification
| Item |
Content |
| ZigBee Module |
Industrial ZigBee module |
| Standard and Band |
IEEE 802.15.4
ISM 2.4 GHz |
| Indoor/Urban Range |
60m
90m(for enhanced version) |
| Outdoor/RF Line-of-Sight Range |
1200m
3200m(for enhanced version) |
| Transmit Power |
3.1 mw (+5dBm) /Normal mode, 6.3 mw (+8dBm)/Boost mode
63 mw (+18dBm) (for enhanced version) |
| Bandwidth |
250Kbps |
| Receiver Sensitivity |
-102dBm |
| Network Topologies |
Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh |
| Number of channels |
16 Direct Sequence Channels
15 Direct Sequence Channels (for enhanced version) |
| Channels |
11 to 26
11 to 25 (for enhanced version) |
Hardware System
| Item |
Content |
| CPU |
Industrial 32 bits CPU |
| FLASH |
512KB (Extendable) |
| SRAM |
256KB(Extendable) |
Interface Type
| Item |
Content |
| Serial |
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps |
| Indicator |
"Power", "ACT", "Online", "ZigBee" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional)
ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM |
Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power |
Terminal block interface, reverse-voltage and overvoltage protection |
Power Input
| Item |
Content |
| Standard Power |
DC 12V/0.5A |
| Power Range |
DC 5~35V |
Power Consumption
| Working States |
Power Consumption |
| Communication |
50-85mA@12VDC；115-160mA@5VDC |
| Standby |
25mA@12VDC；45mA@5VDC |
| Sleep |
8mA@12VDC；18mA@5VDC |
| Timing Power Off |
0.6mA@12VDC；1mA@5VDC |
Physical Characteristics
| Item |
Content |
| Housing |
Iron, providing IP30 protection |
| Dimensions |
91x58.5x22 mm |
| Weight |
210g |
Environmental Limits
| Item |
Content |
| Operating Temperature |
-25~+65ºC (-13~+149℉) |
| Extended Operating Temperature |
-30~+75ºC (-22~+167℉) |
| Storage Temperature |
-40~+85ºC (-40~+185℉) |
| Operating Humidity |
95% ( unfreezing) |
