F8425: Router công nghiệp WCDMA+ ZigBee + 1 LAN + RS-232 APN/VPN

Thương hiệu: Four-Faith | Tình trạng: Còn hàng

Liên hệ

THÔNG TIN SẢN PHẨM

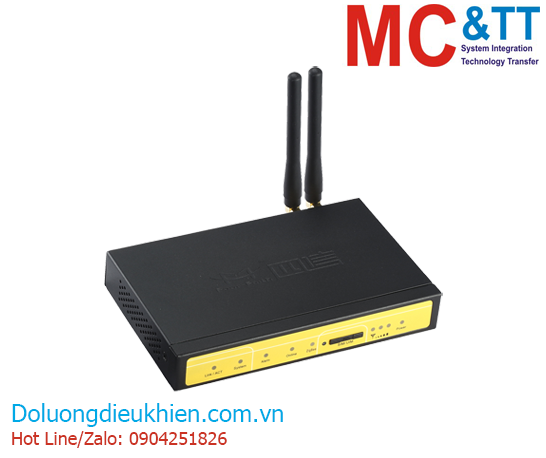

F8425: Router công nghiệp WCDMA+ ZigBee + 1 LAN + RS-232 APN/VPN

Features

●  Support hardware and software WDT
●  Support ZigBee function
●  Support standard RS232(or RS485/RS422) and Ethernet port that can connect to serial and Ethernet devices directly
●  Support APN/VPDN
●  Support NTP, RTC embedded
●  Provide management software for remote management

F8425 ZigBee+WCDMA ROUTER

F8425 ZigBee+WCDMA ROUTER is a kind of cellular terminal device that provides data transfer function by public GPRS network and ZigBee function.It supports RS232 (or RS485/RS422) and Ethernet port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial and Ethernet devices with only basic configuration. Also, it supports ZigBee function.

Environmental Adaptability
Designed for harsh and unattended environment

Powerful network conversion capability
ZigBee to TCP/IP protocol (4G/3G/2.5G network) implement two kinds of network communication agreement

Reliable networking and communications
Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication

Provide more security deployment scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible

Supporting device management platform
Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects.

Specification

Cellular Specification

Cellular Module	Industrial cellular module
Cellular Module	Industrial cellular module
Standard and Band	UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12
Bandwidth	HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed)
TX power	<24dBm
RX sensitivity	<-109dBm

ZigBee Specification

Item	Content
ZigBee Module	Industrial ZigBee Platform
Standard and Band	IEEE 802.15.4 ISM 2.4 ~2.5GHz
Indoor/Urban Range	30m 90m(With PA)
Outdoor/RF Line-of-Sight Range	500m 2000m(With PA)
Transmit Power	2.82 mw (+4.5dBm) 100 mw (+20dBm) (With PA)
Bandwidth	250Kbps
Receiver Sensitivity	-97dBm -103dBm(With PA)
Network Topologies	Point-to-Point, Point-to-Multipoint, Peer-to-Peer and Mesh
Number of channels	16 Direct Sequence Channels
Channel	11 to 26
Max packge size	300Bytes

Hardware System

Item	Content
CPU	Industrial 32bits CPU
FLASH	8MB(Extendable to 64MB)
SDRAM	64MB

Interface Type

Item	Content
Ethernet	1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200bits/s
Indicator	"Power", "System", "Online", "Link/ACT", "Alarm", "ZigBee" ,“Signal Strength”.
Antenna	Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) ZigBee: Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings
